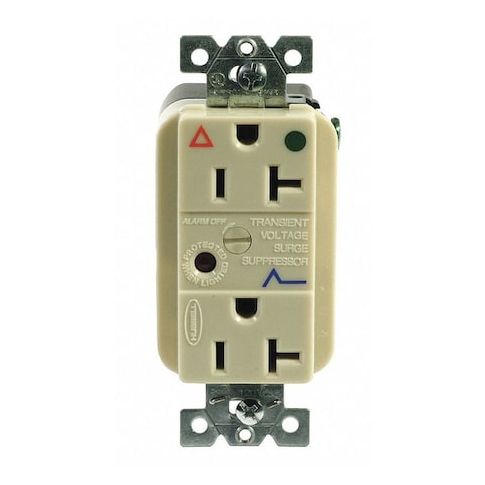

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MPN:IG8362ISA
Free Shipping
In Stock
The HUBBELL Straight Blade Receptacle is a versatile and reliable solution for indoor electrical installations. Suitable for flush mounting, this 20A, 125V AC decorator duplex outlet meets hospital grade standards and features isolated grounding and integrated surge suppression with LED power indicator and audible alarm. Ideal for use in areas requiring transient protection, such as hospitals, laboratories, and commercial offices, this receptacle provides peace of mind with its robust design and reliable performance. Its compact size and flush mount design make it perfect for tight spaces, ensuring safe and efficient electrical distribution.
Top product features:
- Integrated surge suppression with both LED power indicator and audible alarm
- Isolated ground design separates ground contacts from the mounting strap
- Impact-resistant nylon housing with UL 94V-2 flammability rating
Top product applications:
- Residential Electrical Installations
- Commercial Electrical Installations
- Industrial Electrical Installations
The HUBBELL Receptacle is a 20A, 125V AC decorator duplex outlet suitable for flush mounting in indoor locations. It features isolated grounding and includes integrated surge suppression with both LED power indicator and audible alarm. The receptacle is constructed from impact-resistant nylon and meets hospital grade standards, making it suitable for use in electrical installations that require isolated grounding and transient suppression.
Key Features of the HUBBELL 5-20R Decorator Duplex Outlet:
- Amperage/Voltage: Rated for 20A at 125V AC
- Surge Protection: Includes integrated surge suppression with normal and common mode protection
- response time approximately 5 ns
- Grounding: Isolated ground design separates ground contacts from the mounting strap
- Indicators: Power-on LED indicator light and audible alarm indicate device status
- NEMA Configuration: 5-20R straight blade duplex outlet
- Material: Impact-resistant nylon housing
- UL 94V-2 flammability rating
- Mounting Type: Flush mount with screw terminals
- back wiring method supported
- Standards Compliance: CSA Certified C22.2 No.42, UL Listed to UL498 (File E2186)
- Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.10
