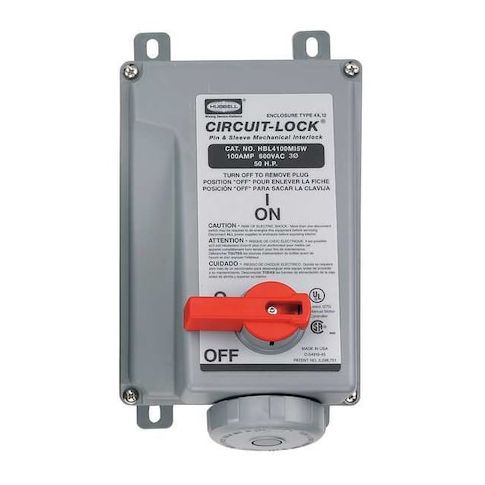

Mch Intrlk Dvc, 3P4W, 100 A, 600V AC, 50hp MPN:HBL4100MI5W
Free Shipping
In Stock
The HUBBELL Mechanical Interlock is a versatile and reliable device designed for use in a variety of applications, including industrial, commercial, and outdoor settings. This device provides a secure and safe way to disconnect and reconnect electrical circuits, with features such as a lockable handle and observation of plug removal. It supports three-phase operation at up to 600V AC and 100A, making it suitable for a range of applications, including construction sites, manufacturing facilities, and outdoor events. Its durable construction and weather-resistant design ensure reliable performance in harsh environments.
Top product features:
- Mechanically interlocked pin and sleeve device allows observation of plug removal
- Lockable handle provides locking capability for lockout/tagout procedures
- Restricts circuit engagement unless the plug is fully inserted
Top product applications:
- Industrial Panel Boards
- Electrical Enclosures
- High-Voltage Switchgear
The HUBBELL Mechanical Interlock, 600VAC, 100A is a mechanically interlocked pin and sleeve device rated for use in indoor and outdoor environments. This unit integrates a disconnect switch with an IEC receptacle in a non-metallic housing, includes a feature that allows observation of plug removal. It features a lockable handle compatible with lockout/tagout procedures and incorporates a mechanism to restrict circuit engagement unless the plug is fully inserted. The device supports three-phase operation at up to 600V AC and 100A, accommodating #3 AWG to #1/0 AWG copper wire.
Key Features of the HUBBELL Mechanical Interlock Device:
- Amperage Rating: Rated for 100 A operation
- Voltage Rating: Suitable for use on three-phase systems up to 600V AC
- Poles/Wires: 3 pole, 4 wire configuration
- Enclosure Material: Thermoplastic (VALOX) housing with stainless steel hardware
- UV stabilized
- Ingress Protection: IP67 rated
- meets Outdoor Type 4X and Indoor Type 12 standards
- Circuit Interrupting Capability: Certified for current interrupting at specified ratings
- Dielectric withstands minimum of 3,000V AC
- Lockable Handle: Provides locking capability
- Circuit Breaker/Fuse Protection: Non-fused design (no circuit breaker included)
- Cable Accommodation: Accepts #3 AWG to #1/0 AWG copper conductors via pressure terminal screws
- Certification & Standards: UL Listed, CSA Certified
- conforms to IEC mechanical interlock standards
- Shaft Seal/Gaskets: Neoprene components included provide additional sealing against dust and liquids
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.25
- Package Width: 10.25
- Package Height: 7.00
- Package Weight: 10.20
