Triple Connectr, Grn, Ser 16, 600VAC/250VDC MPN:HBLM3FGN
Out Of Stock
The HUBBELL Triple Connector, Series 16, is a versatile and reliable solution for electrical distribution applications requiring up to 400A AC/DC. With its tri-tap configuration, this single pole device provides three output connections from one input source, making it ideal for temporary power applications, construction sites, and outdoor events. Its durable construction and NEMA ratings ensure safe and efficient operation in harsh environments. Suitable for use at 600V AC or 250V DC, this connector is compliant with UL498, UL1691, and cUL standards, making it a trusted choice for professionals in the electrical industry.
Top product features:
- Amperage/Current Rating: Rated for up to 400 A AC/DC
- Voltage Rating: Suitable for use at 600V AC or 250V DC
- Meets NEMA 12, 3R, and 4X requirements for enclosure ratings
Top product applications:
- Temporary Power Applications
- Electrical Distribution Systems
- High-Current Power Distribution Systems

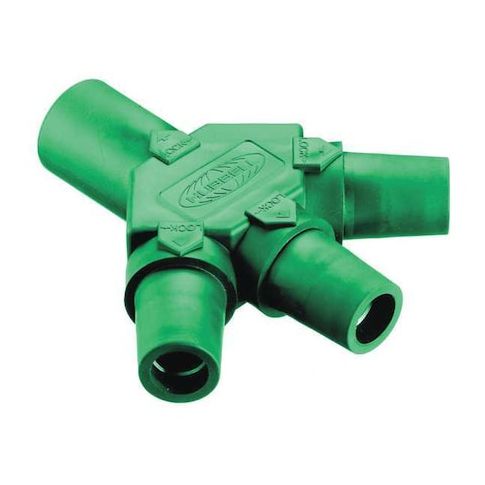

The HUBBELL Triple Connector, Series 16, is a single pole device rated for use in electrical distribution applications requiring up to 400 A AC/DC. Featuring a tri-tap (3-Fer) configuration with one male input and three female outputs, this connector provides three output connections from one input source. It is constructed with an insulated thermoplastic elastomer housing and brass contacts to support demanding temporary power applications as specified by the manufacturer.
Key Features of the HUBBELL Triple Connector:
- Amperage/Current Rating: Rated for up to 400 A AC/DC
- Voltage Rating: Suitable for use at 600V AC or 250V DC
- Configuration: Male-Female-Female-Female (Tri-Tap)
- Compatible Series: Compatible with Series 16 devices
- Material Construction: Brass conductor/contact
- thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA 12, 3R, and 4X requirements
- Operating Temperature Range: -40°C to +75°C continuous operation
- Standards Compliance: UL498, UL1691, cUL listed
- Taper nose style compatible with single pole systems
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
