Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MPN:IG8362GYSA
Free Shipping
In Stock

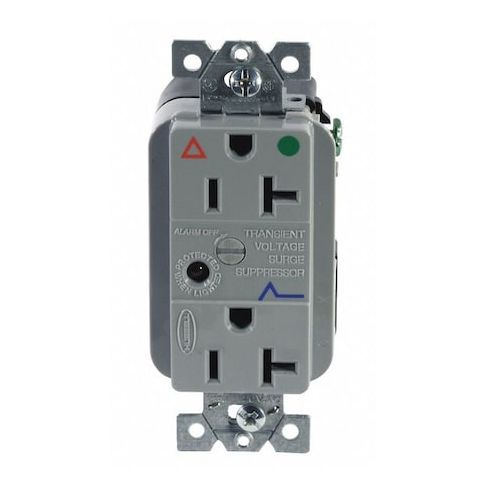

Protect your home and office from power surges with the HUBBELL Decorator Duplex Surge Protection Receptacle. This high-quality, hospital-grade outlet is designed for indoor use and features integrated surge suppression, isolated grounding, and both LED visual and audible indicators for power presence and surge activity. With a durable high-impact nylon face and conformally coated PC board, this receptacle withstands the elements and provides secure electrical connections. Perfect for use in living rooms, kitchens, and offices, this outlet is also ideal for commercial applications, such as hospitals and data centers, where reliable power is crucial.
Top product features:
- Integrated surge suppression using two MOVs
- Includes both LED visual indicator and audible alarm that indicate power presence or surge activity
- High-impact nylon face with conformally coated PC board for durability
Top product applications:
- Home Decorator Installation
- Office Building Electrical Outlets
- Hospital Electrical Outlets
The HUBBELL 20A, 125V AC Decorator Duplex Outlet is a flush mount isolated ground receptacle rated for use with surge suppression in indoor applications. It features a duplex configuration with straight blade connections and is rated for hospital grade use. The outlet includes both LED power indicators and an audible alarm to signal power status and surge events, providing LED and audible indicators for power status and surge events.
Key Features of the HUBBELL Decorator Duplex Surge Protection Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC single phase operation.
- Surge Protection: Integrated surge suppression using two MOVs
- see specifications for transient voltage ratings.
- Isolated Grounding: Isolated ground design separates grounding contacts from the mounting strap.
- Indicator Type: Includes both LED visual indicator and audible alarm that indicate power presence or surge activity.
- Material Construction: High-impact nylon face
- conformally coated PC board
- NEMA Configuration: Accepts NEMA 5-20R plugs
- standard decorator duplex style with flush mount installation.
- Wiring Method & Connection: Back wiring with screw terminals supports secure electrical connections (2 pole, 3 wire).
- Operating Temperature Range: Rated for operation between 32°F and 140°F (0°C to 60°C) in dry indoor locations
- Standards Compliance: CSA Certified C22.2 No.42, UL Listed under standards UL498 and File E2186
- Hospital Grade Fed. Spec compliant.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.10
