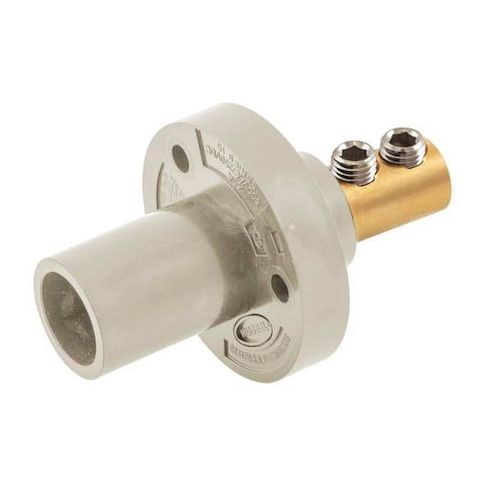

Recpt, White, Male, Double Set Screw, 150 A MPN:HBL15MRW
Free Shipping
In Stock
The HUBBELL Receptacle, Series 15, is a rugged and reliable solution for temporary electrical power distribution in industrial settings. Designed for use in dry indoor locations, it features a taper nose end and accommodates wire sizes from 8 to 2 AWG. With a double set screw termination and brass contacts, this receptacle provides secure connections and meets ANSI/NFPA 70 (NEC), UL Listed, and cUL Listed requirements. Suitable for applications such as construction sites, festivals, and events, it offers flexibility and convenience for temporary power needs, ensuring safe and efficient electrical distribution.
Top product features:
- Accommodates wire sizes from 8 to 2 AWG
- Features a taper nose end
- Uses a double set screw termination for secure connections
Top product applications:
- Temporary electrical power distribution in industrial settings
- Temporary electrical power distribution in harsh environments
- Temporary electrical power distribution in indoor dry locations
The HUBBELL Receptacle, Series 15, is a single pole male inlet intended for use in industrial settings where temporary electrical power distribution is needed. It features a taper nose end and accommodates wire sizes from 8 to 2 AWG. The receptacle uses a double set screw termination for secure connections and is constructed with a thermoplastic elastomer housing and brass contacts.
Key Features of the HUBBELL Receptacle, Series 15:
- Amperage Rating: Rated for up to 150 A at 600V AC or 250V DC
- Cable Range: Accepts #8 to #2 AWG conductors
- Connection Type: Double set screw terminal connection
- Material: Housing made from thermoplastic elastomer
- contact material is brass
- NEMA Enclosure Ratings: For installation in NEMA Types 12, 3R, and 4X enclosures when installed according to instructions
- Mounting Style: Screw mount with through hole mounting design
- includes mounting hardware
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
- fits UL1691 standard
- Environmental Conditions: For indoor dry locations
- additional protection required if used outdoors or in wet environments.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.40
- Package Height: 2.10
- Package Weight: 0.20
