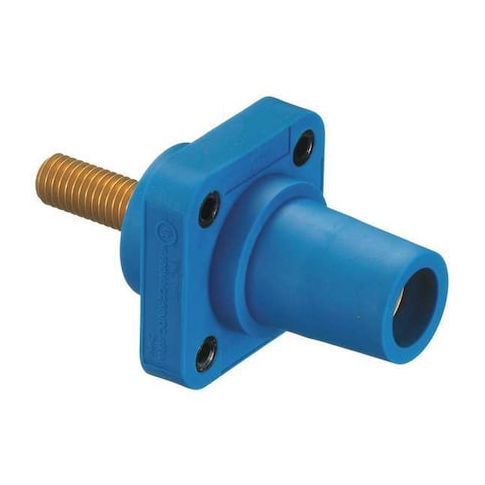

Receptacle, Blue, Female, Stud, Taper Nose MPN:HBLFRSCBL

• The HUBBELL Series 16 Blue Female Stud Taper Nose Receptacle is a single pole, panel mount device rated for use in high current applications. It features a straight connection orientation and is compatible with #4 to 4/0 AWG wire sizes. The receptacle utilizes a threaded stud terminal connection and is suitable for indoor use in dry conditions.





  Key Features of the HUBBELL Series 16 Blue Female Stud Taper Nose Receptacle:





  • Amperage Rating: Rated for up to 400 A (AC/DC), supporting high current applications.


  • Voltage Rating: Suitable for circuits up to 600V AC or 250V DC.


  • Connection Type: Threaded stud terminal accommodates secure mechanical connections.


  • Wire Size Compatibility: Compatible with conductor sizes from #4 AWG to 4/0 AWG.


  • Material Construction: Housing made from thermoplastic elastomer
  • contact material is brass.


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements when properly installed.


  • Standards Compliance: Listed under: ANSI/NFPA 70 (National Electric Code), UL/cUL standards including UL1691 enclosure types.


  • Device Style: Single pole, female receptacle with taper nose design
  • panel mount style using threaded thru-hole hardware.
