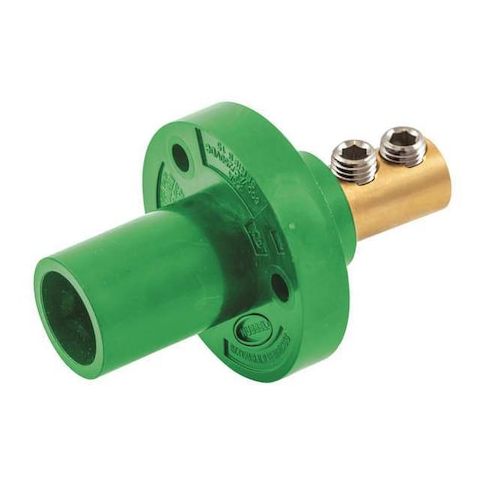

Recpt, Green, Male, Double Set Screw, 150 A MPN:HBL15MRGN
Free Shipping
In Stock
The HUBBELL Receptacle, Male, Green, 8-2, 150AC/DC is a versatile and reliable solution for temporary electrical power distribution in industrial settings. Its compact design and robust construction make it ideal for use in harsh environments, while its double set screw terminal connection accommodates a wide range of wire sizes. With a rating of up to 150 amps at 600V AC or 250V DC, this receptacle meets the needs of demanding applications. Suitable for use in NEMA Type 12, Type 3R, and Type 4X enclosures, it is an excellent choice for industries such as construction, manufacturing, and oil and gas.
Top product features:
- Accepts cable sizes from #8 AWG to #2 AWG
- Double set screw terminal connection with conductor retention
- Rated for up to 150A at either 600V AC or 250V DC
Top product applications:
- Temporary electrical power distribution in industrial settings
- Temporary electrical power distribution in hazardous locations
- Temporary electrical power distribution in high-temperature environments
The HUBBELL Receptacle, Male, Green, 8-2, 150AC/DC is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male receptacle features a straight connection orientation and utilizes a double set screw terminal connection to accommodate wire sizes from #8 to #2 AWG. It is rated for up to 150 amps at 600V AC or 250V DC and is compatible with Series 15 devices.
Key Features of the HUBBELL Receptacle, Male, Green, 8-2, 150AC/DC:
- Amperage/Voltage Rating: Rated for up to 150A at either 600V AC or 250V DC
- Cable Range: Accepts cable sizes from #8 AWG to #2 AWG
- Terminal Connection: Double set screw design features a conductor retention
- Material Construction: Brass contacts within a thermoplastic elastomer housing
- NEMA Enclosure Ratings: Compatible with NEMA Type 12, Type 3R, and Type 4X enclosures when installed according to instructions
- Mounting Style: Screw mount with through hole mounting configuration
- includes mounting hardware
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements
- fits UL1691 specifications
- Pole Configuration: Single pole device with taper nose style inlet
- male gender connector
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 6.00
- Package Height: 2.50
- Package Weight: 0.20
