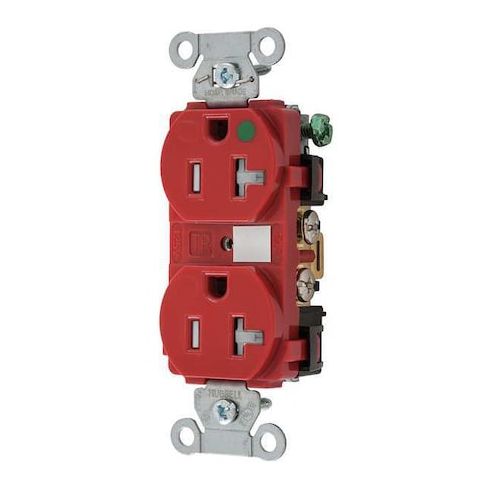

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:8300REDTRA
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a heavy-duty electrical outlet designed for use in environments requiring hospital-grade receptacles. Suitable for high-traffic areas, this receptacle features tamper-resistant shutters and is rated for 20 amps at 125 volts AC. Its flush mount design and galvanized steel mounting strap provide a secure and durable installation. This receptacle supports both back and side wiring methods, making it versatile for various applications, including commercial and industrial settings, healthcare facilities, and high-rise buildings. Its compliance with CSA, UL, and NEMA standards ensures a safe and reliable electrical connection.
Top product features:
- The receptacle features a tamper-resistant shutter mechanism to prevent accidental insertion of objects into the outlet.
- It is rated for 20 amps at 125 volts AC, suitable for heavy-duty and hospital-grade applications.
- The receptacle supports both back and side wiring methods, accommodating #12 to #10 AWG copper wire.
Top product applications:
- Heavy-duty and hospital-grade receptacles
- Commercial settings such as offices and restaurants
- Residential areas requiring high-amperage outlets
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a traditional duplex electrical outlet suitable for use in environments requiring heavy-duty and hospital-grade receptacles. It features tamper-resistant shutters and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods, accommodates #12 to #10 AWG copper wire, and includes mounting hardware for flush installation.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R, duplex style with polarized design
- Tamper Resistant: Built-in shutter mechanism
- Wiring Options: Back and side wired
- screw terminals accept #12–#10 AWG stranded or solid copper wire
- Material Construction: Nylon face and housing with brass power contacts
- galvanized steel mounting strap
- Mounting Type: Flush mount with included zinc-plated steel screws
- Operating Temperature Range: -40°C to +75°C (without impact)
- Standards Compliance: Certified to CSA C22.2 No.42, UL Listed to UL498, Federal Specification W-C-596, NEMA WD-6 compliant
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.81
- Package Width: 4.25
- Package Height: 3.50
- Package Weight: 2.20
