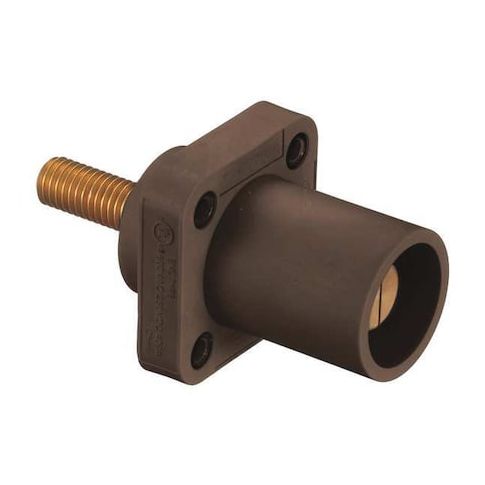

Recpt, Brown, Male, Threaded Stud, 400 A MPN:HBLMRSBN
Free Shipping
In Stock
The HUBBELL Series 16 Single Pole Receptacle is a high-performance, male, flanged device designed for use in high-ampacity electrical connections. Ideal for indoor use in dry locations, this receptacle accommodates cable sizes from 4 AWG to 4/0 AWG, making it suitable for a wide range of applications including commercial and industrial settings. With a rating of up to 400A and 600V AC or 250V DC, this receptacle provides reliable and efficient connections for demanding electrical systems. Its durable construction and NEMA compliance ensure long-lasting performance and meet the highest standards for safety and reliability.
Top product features:
- Rated up to 400 A (AC), compatible with both AC/DC applications
- Supports up to 600V AC or 250V DC
- Accepts wire sizes from #4 AWG to #4/0 AWG
Top product applications:
- High ampacity electrical connections
- Industrial control panels
- Heavy-duty power distribution systems
The HUBBELL Series 16 Single Pole Receptacle is a male, flanged device rated for use in high ampacity electrical connections. It accommodates cable sizes from 4 AWG to 4/0 AWG and features a straight connection orientation with a taper nose end type. This receptacle is intended for indoor use in dry locations.
Key Features of the HUBBELL Series 16 Single Pole Male Receptacle:
- Amperage Rating: Rated up to 400 A (AC), compatible with both AC/DC applications
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG
- Terminal Connection Type: Threaded stud with screw terminal connectivity
- Material Construction: Brass conductor/contact material
- thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed, cUL Listed, ANSI/NFPA 70 (NEC)
- Mounting Style: Stud type with through hole mounting
- includes mounting hardware
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.40
- Package Height: 2.50
- Package Weight: 0.60
