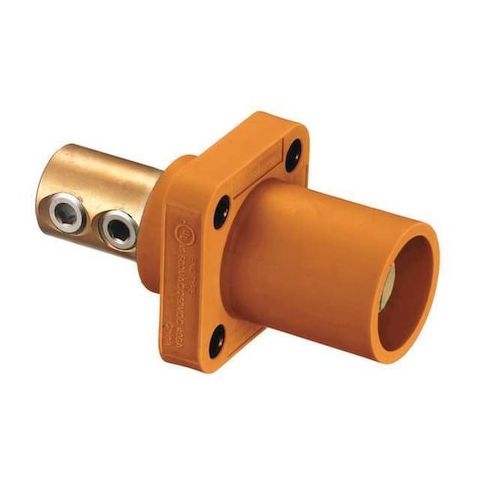

Recpt, Orange, Male, Double Set Screw, 400 A MPN:HBLMRO

• The HUBBELL Receptacle, 4 to 4/0, Male, Double Set is a single pole device rated for use in high ampacity electrical connections. This male receptacle features a flanged design with a taper nose and double set screw terminal connection, compatible with Series 16 devices. It accommodates cable sizes from #4 AWG to 4/0 AWG and is intended for indoor dry locations

• consult installation guidelines if additional protection is required.




  Key Features of the HUBBELL Receptacle, 4 to 4/0, Male, Double Set:





  • Amperage Rating: Rated at 400 A (AC) and compatible with AC/DC applications within specified amperage ranges (300/400A).


  • Voltage Rating: Supports up to 600V AC or 250V DC.


  • Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG.


  • Terminal Connection Type: Double set screw terminals allow connection without special tools.


  • Conductor & Contact Material: Brass conductor and contact material.


  • Housing Material: Thermoplastic elastomer housing, standard-sized form factor.


  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures when properly installed.


  • Mounting Style: Screw mount through-hole installation
  • includes mounting hardware.


  • Industry Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed standards including UL1691 compatibility.
