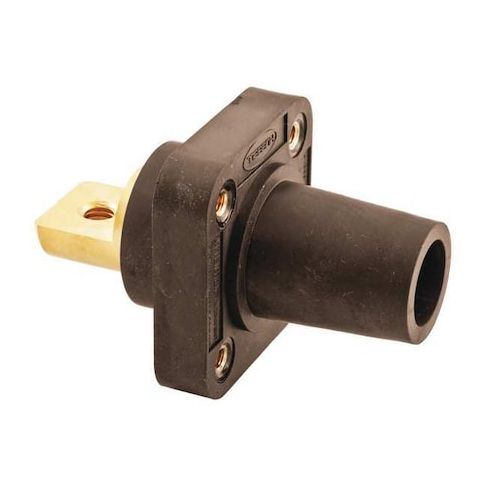

Receptacle, Brown, Female, Bus Bar, 400 A MPN:HBLFRBBN

• The HUBBELL Receptacle, Brown, Female, Taper Nose is a single pole device rated for use in high ampacity electrical connections. This receptacle features a female bus bar mount with a taper nose end type and is compatible with Series 16 components. It supports up to 400A at 600V AC or 250V DC and accommodates wire sizes from #4 AWG to 4/0 AWG. The housing is thermoplastic elastomer

• intended for indoor dry locations unless otherwise protected.




  Key Features of the HUBBELL Receptacle, Brown, Female, Taper Nose:





  • Amperage/Voltage Rating: Rated for up to 400A (AC/DC) and 600V AC / 250V DC applications


  • Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG


  • Connection Type: Double set screw terminals
  • bus bar terminal connection


  • Mounting Style: Threaded mounting with included hardware
  • fits UL1691 standards


  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures


  • Material Construction: Brass contacts within a thermoplastic elastomer housing


  • Industry Standards: Meets ANSI/NFPA 70 (NEC), cUL Listed, UL Enclosure Types requirements


  • Environmental Conditions: Intended for indoor dry conditions unless otherwise protected
