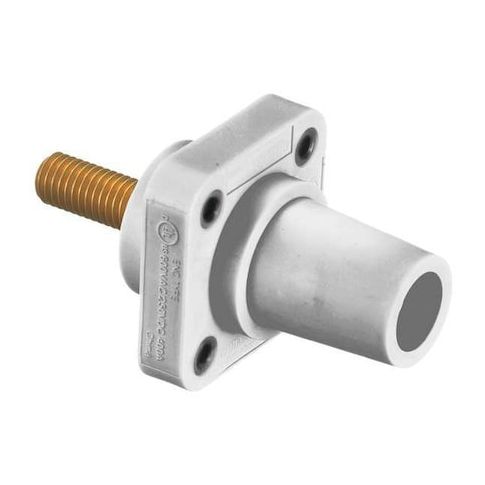

Receptacle, Wht, Female, Taper, Sud, Ser 16 MPN:HBLFRSCW

• The HUBBELL Series 16 Female Receptacle is a single pole, panel mount device rated for high ampacity electrical connections. It features a straight, taper nose configuration with stud-type connectivity and is suitable for indoor use in dry locations unless additional protection is provided. This receptacle accommodates wire sizes from #4 AWG to 4/0 AWG and supports up to 400A at 600V AC or 250V DC, making it compatible with demanding power distribution requirements.





  Key Features of the HUBBELL Series 16 Female Receptacle:





  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


  • Voltage Rating: Supports up to 600V AC / 250V DC


  • Connection Type: Threaded stud terminal connection
  • stud type mounting style


  • Wire Size Compatibility: Accepts #4 AWG to #4/0 AWG conductors


  • Material Construction: Brass contact material
  • thermoplastic elastomer housing


  • NEMA Enclosure Ratings: Suitable for NEMA Types 12, 3R, and 4X enclosures


  • Industry Standards: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed standards


  • Pole/Wire Configuration: Single pole, single wire design
  • female gender connection
