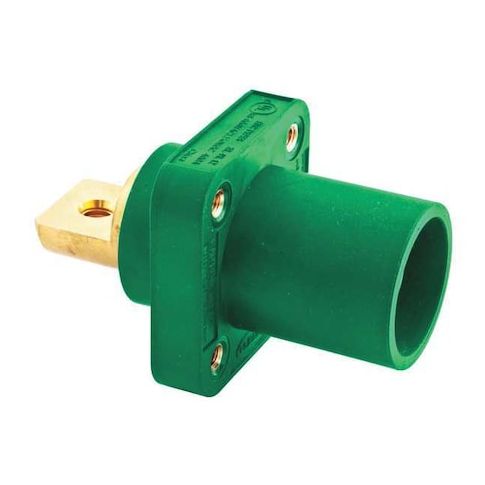

Receptacle, Grn, Male, Taper Nose, Ser 16 MPN:HBLMRBGN
Free Shipping
In Stock
The HUBBELL Series 16 Single Pole Male Receptacle is a versatile and reliable electrical connection solution, ideal for applications requiring high amperage and voltage ratings. Rated for up to 400A and 600V AC or 250V DC, this receptacle supports a wide range of wire sizes and is compatible with bus bar mounting. Suitable for indoor use in dry conditions, it meets NEMA Types 12, 3R, and 4X requirements and is UL Listed. Perfect for use in industrial settings, construction sites, and commercial facilities, this receptacle provides a secure and efficient connection for electrical systems.
Top product features:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC)
- Voltage Rating: Supports up to 600V AC / 250V DC
- Thermoplastic elastomer housing for durability in specified environments
Top product applications:
- General purpose electrical connections in industrial settings
- Bus bar connections in electrical panels
- Heavy-duty electrical connections in dry indoor environments
The HUBBELL Series 16 Single Pole Male Receptacle is rated for use in applications requiring up to 400A electrical connections, supporting up to 400A and rated for 600V AC or 250V DC. This straight connection device features a taper nose end type
- mates with corresponding female connectors and is suitable for use with #4 AWG to 4/0 AWG wire sizes. The receptacle includes a thermoplastic elastomer housing and brass conductor contacts, compatible with bus bar mounting
- intended for indoor use in dry conditions unless otherwise protected.
Key Features of the HUBBELL Series 16 Single Pole Male Receptacle:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC)
- Voltage Rating: Supports up to 600V AC / 250V DC
- Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG
- Connection Orientation: Straight with double set screw terminals
- End Type: Taper nose end type
- mates with corresponding female connectors
- Mounting Style: Threaded hole mounting
- includes screw hardware
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed, cUL Listed
- meets ANSI/NFPA70 (NEC), UL1691 standards
- Housing Material: Thermoplastic elastomer housing for durability in specified environments
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.80
- Package Height: 2.80
- Package Weight: 0.60
