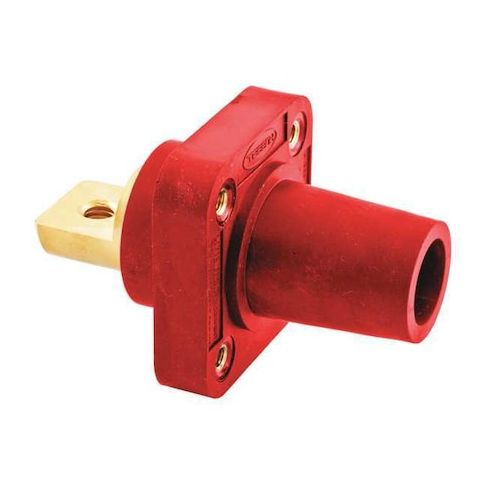

Receptacle, Taper Nose, 4-4/0, Female, Red MPN:HBLFRBR
Free Shipping
In Stock
The HUBBELL Receptacle, Taper Nose, 4-4/0, Female, Red is a reliable and versatile electrical connection solution for commercial and industrial applications. Rated for up to 400 A, it provides a secure and efficient connection for wire sizes from #4 AWG to 4/0 AWG, making it ideal for use in high-amperage applications. Meets NEMA Types 12, 3R, and 4X requirements and is UL Listed, ensuring compliance with industry standards. Suitable for use in indoor dry locations, this receptacle is perfect for applications such as power distribution, motor control, and electrical panel installations, providing a durable and long-lasting connection.
Top product features:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC) electrical connections
- Accepts conductor sizes from #4 AWG to 4/0 AWG for flexible wiring options
- Meets NEMA Types 12, 3R, and 4X requirements for harsh environment protection
Top product applications:
- Commercial Applications
- Industrial Applications
- Outdoor Dry Locations
The HUBBELL Receptacle, Taper Nose, 4-4/0, Female, Red is a single pole device rated for use in applications requiring up to 400 A (300/400A AC/DC) electrical connections. This female receptacle intended for commercial and industrial applications is compatible with Series 16 devices and accommodates wire sizes from #4 AWG to 4/0 AWG. It features a straight connection orientation and utilizes screw terminals for conductor attachment. The housing is constructed from thermoplastic elastomer and the contact material is brass.
Key Features of the HUBBELL Receptacle, Taper Nose, 4-4/0, Female:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC)
- Voltage Rating: Suitable for use at up to 600V AC or 250V DC
- Cable Range: Accepts conductor sizes from #4 AWG to 4/0 AWG
- Connection Type: Double set screw terminal connection
- bus bar mount style
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed
- cUL Listed
- ANSI/NFPA 70
- National Electric Code (NEC)
- Mounting Style: Threaded mounting with included hardware
- Environmental Conditions: Intended for indoor dry locations
- additional protection may be be required per installation environment
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 2.25
- Package Weight: 0.55
