Recpt, Yllw, Female, Double Set Screw, 400 A MPN:HBLFRY
Free Shipping
In Stock

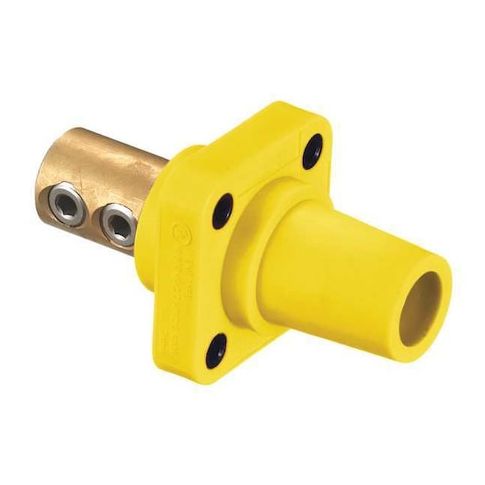

The HUBBELL Series 16 Single Pole Female Receptacle is a reliable and versatile solution for high ampacity electrical connections. Rated for use with cable sizes from 4 AWG to 4/0 AWG, this panel mount receptacle is suitable for a wide range of applications, including indoor dry locations. Its double set screw terminal connection and thermoplastic elastomer housing ensure secure conductor retention and durability. Meets ANSI/NFPA 70, National Electric Code (NEC), UL Listed, and cUL Listed requirements, making it a trusted choice for industries such as manufacturing, construction, and renewable energy.
Top product features:
- Amperage Rating: Rated up to 400 A (300/400A AC/DC)
- Supports up to 600V AC or 250V DC
- Accepts wire sizes from #4 AWG to #4/0 AWG
Top product applications:
- Industrial electrical panel installation
- Construction and manufacturing facilities
- High-power equipment installations in industrial settings
The HUBBELL Series 16 Single Pole Female Receptacle is rated for use with high ampacity electrical connections, supporting cable sizes from 4 AWG to 4/0 AWG. This panel mount receptacle features a straight connection orientation and a taper nose end type, intended for use in indoor dry locations
- consult installation guidelines if additional protection is required. It utilizes a double set screw terminal connection and is constructed with a thermoplastic elastomer housing and brass contacts.
Key Features of the HUBBELL Series 16 Single Pole Female Receptacle:
- Amperage Rating: Rated up to 400 A (300/400A AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG
- Terminal Connection Type: Double set screw design for secure conductor retention
- Material Construction: Brass contact material with thermoplastic elastomer housing
- NEMA Enclosure Ratings: Suitable for use in NEMA Types 12, 3R, and 4X enclosures
- Mounting Style: Through hole mounting with threaded thru-hole hardware
- panel mount configuration
- Standards Compliance: Meets ANSI/NFPA 70, National Electric Code (NEC), UL Listed, cUL Listed requirements
- fits UL1691 standard
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.73
