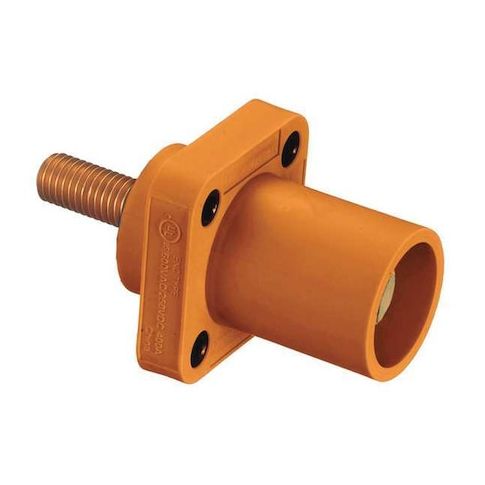

Receptacle, 4-4/0, Male, Org, Stud, Taper MPN:HBLMRSO

• The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This receptacle features a straight, taper nose design with threaded stud terminals and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for use in indoor dry locations

• additional protection may be required for other environments.




  Key Features of the HUBBELL Series 16 Male Receptacle:





  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


  • Voltage Rating: Supports up to 600V AC or 250V DC


  • Cable Range: Accepts wire sizes from #4 AWG to 4/0 AWG


  • Terminal Connection Type: Threaded stud connection with screw terminals


  • Material Construction: Brass conductor/contact
  • thermoplastic elastomer housing


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


  • Standards Compliance: Listed under ANSI/NFPA 70, NEC, UL/cUL standards including UL1691 compatibility


  • Mounting Style: Through hole mounting with included hardware
  • flange shape is square


  • Device Orientation & Gender: Straight orientation
  • male configuration
  • single pole style (taper nose)
