Receptacle, Blu, Male, Stud, Taper Nose MPN:HBLMRSCBL
Free Shipping
In Stock

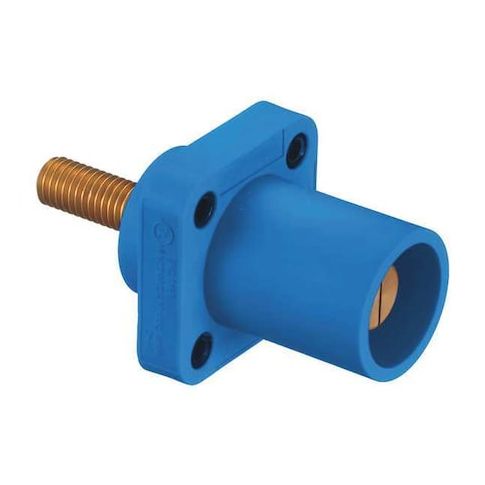

The HUBBELL Receptacle, Blue, Male, Stud, Taper Nose is a reliable and high-performance device designed for temporary power distribution systems requiring high ampacity electrical connections. Ideal for use in construction, industrial, and commercial settings, this single-pole receptacle offers a secure and efficient way to connect high-current electrical cables. With a rating of up to 400A and 600V AC or 250V DC, it meets the needs of demanding applications. Its durable thermoplastic elastomer housing and brass contact material ensure long-lasting performance, making it a trusted choice for professionals in the electrical industry.
Top product features:
- Rated for up to 400 A (300/400A AC/DC) to provide a high ampacity electrical connection.
- Meets NEMA Types 12, 3R, and 4X requirements for protection against environmental factors.
- Accepts #4 AWG to 4/0 AWG conductors for flexibility in wire sizing.
Top product applications:
- Temporary power distribution systems
- Construction sites
- Industrial facilities
The HUBBELL Receptacle, Blue, Male, Stud, Taper Nose is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This male receptacle features a straight connection orientation and utilizes screw terminals with a threaded stud mounting style. It is compatible with Series 16 devices and accommodates wire sizes from #4 AWG to 4/0 AWG. The housing is constructed from thermoplastic elastomer and the contact material is brass.
Key Features of the HUBBELL Receptacle, Blue, Male, Stud, Taper Nose:
- Amperage Rating: Rated for up to 400 A (300/400A AC/DC)
- Voltage Rating: Rated for operation at 600V AC or 250V DC
- Connection Type: Threaded stud terminal connection
- screw mounting hardware included
- Wire Size Compatibility: Accepts #4 AWG to 4/0 AWG conductors
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed
- cUL Listed
- ANSI/NFPA 70
- National Electric Code (NEC)
- UL Enclosure Types
- Housing Material: thermoplastic elastomer. For indoor dry locations
- additional protection required if used elsewhere.
- Pole Configuration: Single-pole design with taper nose style
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 2.30
- Package Weight: 0.52
