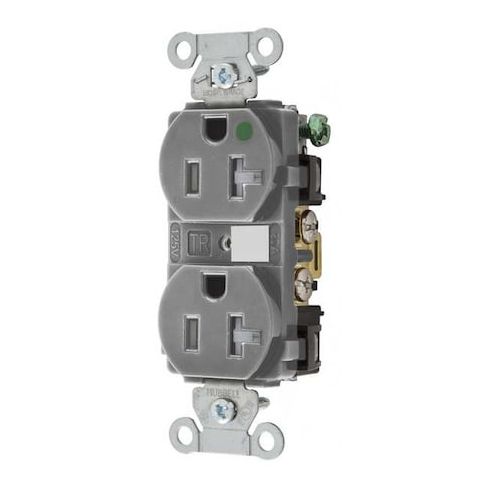

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:8300GYTRA

• The HUBBELL - 20A Duplex Receptacle 125VAC 5-20R GY is a traditional duplex electrical outlet rated as hospital grade and suitable for use in demanding environments. It features a tamper-resistant

• integrated shutters help prevent unintended access to the contacts. It supports both back and side wiring methods, accommodating #12 to #10 AWG stranded or solid copper wire. Its construction includes a high impact resistant nylon face with an area for circuit identification marking, as well as a galvanized steel mounting strap.




  Key Features of the HUBBELL - 20A Duplex Receptacle:





  • Tamper Resistant: Integrated shutters help prevent unintended access to the contacts.


  • Amperage/Voltage Rating: Rated for 20 A at 125 VAC
  • suitable for circuits requiring these specifications.


  • Wiring Options: Supports both back and side wired connections using screw terminals
  • accommodates #12–#10 AWG copper wire.


  • Material Construction: Nylon face and housing constructed with nylon face and housing
  • brass power and ground contacts


  • Mounting Type: Flush mount installation with included zinc plated steel screws and galvanized steel strap.


  • Certification & Standards: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498.


  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V
  • flammability rated UL94 V-2.


  • Operating Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (without impact).
