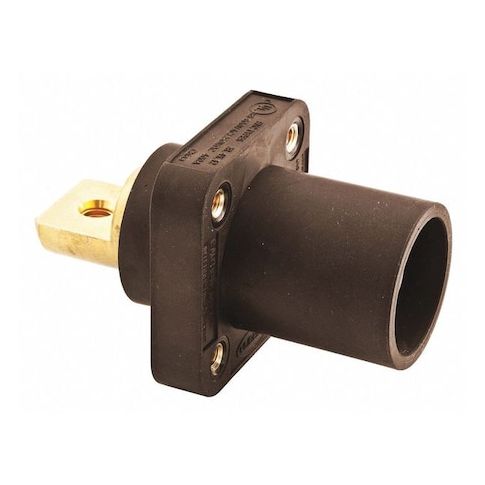

Receptacle, Brwn, Male, Double Set Screw MPN:HBLMRBBN

• The HUBBELL Receptacle, Brown, Male, Double Set Screw is a single pole device rated for high ampacity electrical connections. This male bus receptacle features a flanged, taper nose style and is compatible with Series 16 devices. It accommodates wire sizes from #4 AWG to 4/0 AWG and utilizes double set screw terminals.





  Key Features of the HUBBELL Receptacle, Brown, Male, Double Set Screw:





  • Amperage Rating: Rated up to 400 A (300/400A AC/DC)


  • Voltage Rating: Rated for operation at 600V AC or 250V DC


  • Cable Range: Accepts #4 AWG to 4/0 AWG conductors


  • Terminal Connection Type: Double set screw terminals


  • Mounting Style: Threaded mounting with included hardware
  • fits UL1691 requirements


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards


  • Standards Compliance: ANSI/NFPA 70 (NEC), cUL Listed, UL Listed


  • Material Construction: Thermoplastic elastomer housing with brass contacts/conductors
