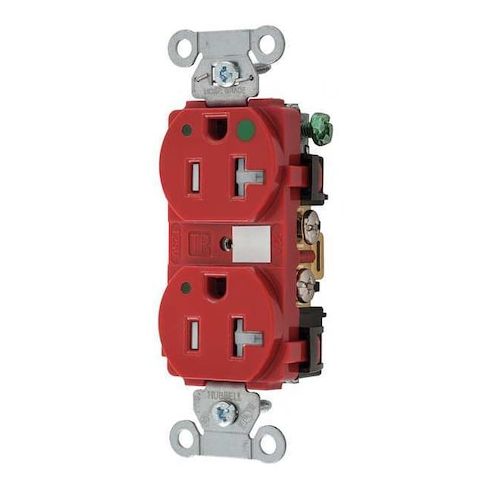

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:8300REDLTRA
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and versatile solution for demanding environments, including hospitals and commercial spaces. Its integrated shutter mechanism provides tamper resistance, while the green LED indicator identifies emergency circuits. Constructed with a durable nylon face and galvanized steel mounting strap, this receptacle ensures secure installation. Suitable for 20 A, 125 VAC operation, it accommodates #12–#10 AWG stranded or solid copper wire and is compliant with UL Listed, CSA Certified, NEMA WD-6, and Hospital Grade Fed. Spec. standards. Its flush mount design makes it ideal for new constructions or renovations, offering a safe and efficient solution for a wide range of applications.
Top product features:
- Integrated shutter mechanism helps prevent unwanted object insertion
- Green LED indicator identifies emergency circuits
- Accommodates #12–#10 AWG stranded or solid copper wire
Top product applications:
- Commercial Office Buildings
- Healthcare Facilities
- Industrial Settings
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a traditional duplex electrical outlet designated as hospital grade and suitable for demanding environments. It features an integrated shutter mechanism and a green LED indicator to identify emergency circuits. The receptacle is constructed with a nylon face and includes a galvanized steel mounting strap for secure installation.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A, 125 VAC operation
- NEMA Configuration: 5-20R
- Tamper Resistant: Integrated shutter mechanism helps prevent unwanted object insertion
- Power Indicator: Green LED indicator
- Wiring Options: Back and side wired
- accommodates #12–#10 AWG stranded or solid copper wire
- Material Construction: Nylon face and housing with brass contacts
- galvanized steel mounting strap
- Mounting Type: Flush mount design with included screw hardware
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certifications & Standards: UL Listed, CSA Certified, NEMA WD-6 compliant, Hospital Grade Fed. Spec.
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.81
- Package Width: 4.25
- Package Height: 3.50
- Package Weight: 2.20
