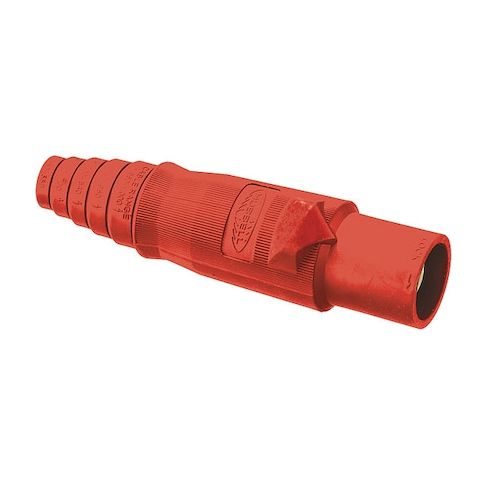

Single Pole Connector Body, M, Red MPN:HBLMBR

• The HUBBELL Single Pole Connector, Male, Red is a replacement connector body intended for temporary electrical power distribution systems. This male single pole connector is compatible with Series 16 devices and includes a thermoplastic elastomer housing. It is rated for up to 400 amps and supports voltage ratings of 600V AC or 250V DC. The product meets UL 498 and UL1691 standards and fits applications where compliance with these specifications is required.





  Key Features of the HUBBELL Single Pole Connector, Male, Red:





  • Amperage Rating: Rated for up to 400 A maximum current


  • Voltage Rating: Rated for operation at 600V AC or 250V DC


  • Compatible Series: Compatible with Series 16 connectors


  • NEMA Enclosure Ratings: For use in NEMA Type 12, 3R, and 4X enclosures


  • Standards Compliance: Meets UL, cUL certifications
  • conforms to UL498 and UL1691 requirements


  • Housing Material: Constructed from thermoplastic elastomer for durability


  • Terminal Connection: Single pin connection type


  • Style/Type: Replacement body
  • male configuration
