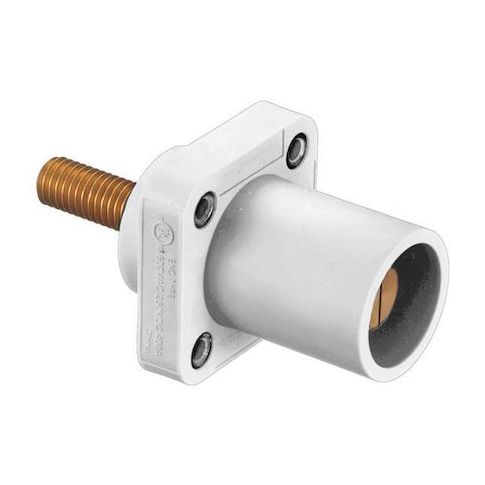

Recpt, White, Male, Stud Terminals, 400 A MPN:HBLMRSCW

• The HUBBELL Connector, Male, White, 4 to 4/0, Stud is a single pole receptacle rated for use in high ampacity electrical connections. This male connector is compatible with Series 16 devices and accommodates wire sizes from #4 AWG to 4/0 AWG. It includes a threaded stud terminal connection and is constructed with a thermoplastic elastomer housing

• intended for installation in indoor or protected environments as specified by the manufacturer.




  Key Features of the HUBBELL Connector, Male, White, 4 to 4/0, Stud:





  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


  • Voltage Rating: Suitable for applications up to 600V AC or 250V DC


  • Terminal Connection Type: Threaded stud design allows mounting and connectivity


  • Wire Size Compatibility: Accepts conductor sizes from #4 AWG to 4/0 AWG


  • Material Construction: Brass contacts within a thermoplastic elastomer housing


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements when properly installed


  • Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards including UL1691


  • Mounting Style: Threaded hole mounting
  • includes screw mounting hardware
