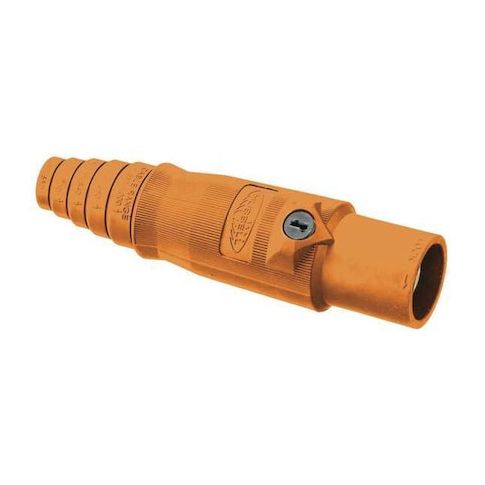

Single Pole Inline, 400 A, Male, Orange MPN:HBL400MO
Free Shipping
In Stock
The HUBBELL Series 16 Single Pole Male Connector is a reliable and durable solution for temporary electrical power distribution. Designed for use in harsh environments, this connector meets NEMA Types 3R, 4X, and 12 requirements, ensuring safe and secure connections in wet, dusty, and corrosive conditions. With a current rating of up to 400A and voltage rating of up to 600V AC or 250V DC, it's ideal for applications such as construction sites, outdoor events, and industrial settings. Its ease of use, high amperage rating, and compatibility with other HUBBELL devices make it a top choice for electrical professionals.
Top product features:
- Accommodates cable sizes from 2/0 to 4/0 AWG
- Features a taper nose end with double set screw terminal connections
- Rated for operation at currents up to 400 A and voltages up to 600V AC or 250V DC
Top product applications:
- Temporary electrical power distribution
- Construction and industrial electrical power distribution
- Emergency power generation and distribution systems
The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose end with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and the contact material is brass, rated for operation at currents up to 400 A and voltages up to 600V AC or 250V DC.
Key Features of the HUBBELL Series 16 Single Pole Male Connector:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG
- Contact Material: Brass single cam contacts
- Terminal Connection Type: Double set screw design
- Housing Material: Thermoplastic elastomer construction
- NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements
- Voltage Rating: Up to 600V AC / 250V DC maximum
- Industry Standards: UL Listed
- cUL Listed
- ANSI/NFPA70
- National Electric Code (NEC)
- UL Enclosure Types compliance
- Compatible With: Series 15, Series 16, Insulgrip devices
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.00
- Package Height: 2.25
- Package Weight: 0.73
