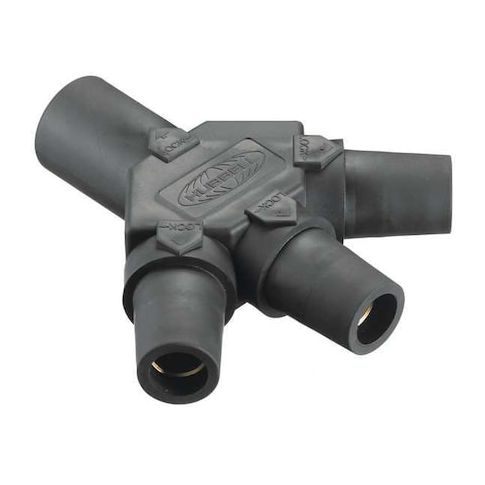

Triple Connector, Blk, Ser 16, Taper Nose MPN:HBLM3FBK

• The HUBBELL Triple Connector, Series 16, is a single pole device rated for high ampacity electrical distribution. This tri-tap connector features a male-female-female-female configuration and is constructed with an insulated thermoplastic elastomer housing and brass contacts. It is intended for use in temporary or portable power connection scenarios with multiple outputs.





  Key Features of the HUBBELL Triple Connector:





  • Amperage/Voltage Rating: Rated for up to 400 A and 600V AC / 250V DC operation


  • Configuration: Male-Female-Female-Female (Tri-Tap) design allows one input with three output connections


  • Material: Brass conductor/contact material
  • housing made from thermoplastic elastomer


  • Operating Temperature Range: -40°C to 75°C continuous use


  • NEMA Enclosure Ratings: Meets NEMA 12, 3R, and 4X requirements


  • Industry Standards: Complies with UL498, UL1691, cUL standards


  • Compatible Series: Compatible with Series 16 connectors
  • fits UL1691 devices


  • Permanently Marked Ratings: Electrical ratings are permanently marked on the device body for reference
