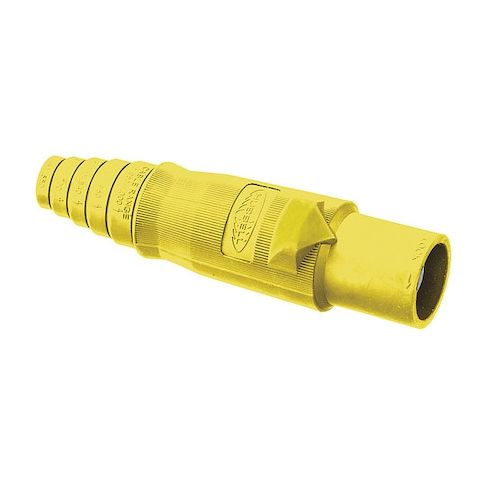

Single Pole Connector, Male, Yellow MPN:HBLMBY
Free Shipping
In Stock
The HUBBELL Single Pole Connector, Male, Yellow is a reliable replacement connector body designed for temporary electrical power distribution systems. Compatible with Series 16 devices, this connector features a thermoplastic elastomer housing and is rated for up to 400 amps with 600V AC or 250V DC voltage ratings. Ideal for use in applications requiring NEMA Type 12, 3R, or 4X protection, this connector meets UL 498 and UL 1691 standards. Its single pin connection type and male configuration make it a convenient and efficient solution for a variety of industries, including construction, manufacturing, and emergency response.
Top product features:
- Rated for up to 400 A
- Supports up to 600V AC or 250V DC
- Meets UL 498 and UL 1691 standards for safety and performance
Top product applications:
- Temporary electrical power distribution systems
- Industrial control panels
- Heavy-duty electrical installations in wet or corrosive environments
The HUBBELL Single Pole Connector, Male, Yellow is a replacement connector body intended for use in temporary electrical power distribution systems. This male single pole connector is compatible with Series 16 devices and has a thermoplastic elastomer housing. It is rated for operation at up to 400 amps, with voltage ratings of 600V AC or 250V DC. The product meets UL 498 and UL 1691 standards
- NEMA enclosure types: 12, 3R, and 4X.
Key Features of the HUBBELL Single Pole Connector Body:
- Amperage Rating: Rated for up to 400 A
- Voltage Rating: Supports up to 600V AC / 250V DC
- Compatible Series: For use with Series 16 connectors
- Housing Material: Thermoplastic elastomer housing
- NEMA Enclosure Ratings: Suitable for applications requiring NEMA Type 12, 3R, or 4X protection
- Industry Standards: Meets UL, cUL certifications
- compliant with UL498 and UL1691 requirements
- Terminal Connection: Single pin connection type
- Style/Type: Replacement body
- male configuration
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.15
