SinglePoleInline, 300A, Female, Orange MPN:HBL300FO
Free Shipping
In Stock

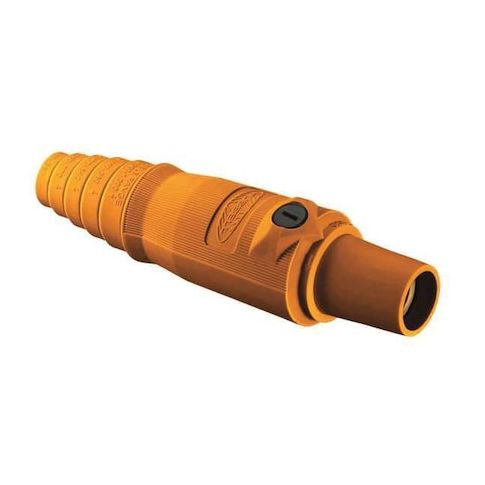

The HUBBELL Series 16 Single Pole Female Connector is a reliable and versatile solution for temporary electrical power distribution applications. Suitable for use in harsh environments, it meets NEMA types 3R, 4X, and 12 requirements for protection against dust, water, and corrosion. With an amperage rating of up to 300 A and voltage rating of up to 600V AC or 250V DC, this connector is ideal for a variety of applications, including construction, industrial, and outdoor events. Its thermoplastic elastomer housing and double set screw terminal connection ensure secure and efficient connections, making it a trusted choice for professionals in the electrical industry.
Top product features:
- Accommodates cable sizes from 6 AWG to 2/0 AWG
- Rated for up to 300 A (AC/DC)
- Meets NEMA Types 3R, 4X, and 12 requirements for protection against dust, water, and corrosion
Top product applications:
- Temporary electrical power distribution applications
- Temporary power distribution in hazardous locations
- Temporary power distribution in wet or corrosive environments
The HUBBELL Connector, Series 16, is a single pole female connector intended for use in temporary electrical power distribution applications. It features a taper nose style and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector uses a double set screw terminal connection and is constructed with a thermoplastic elastomer housing.
Key Features of the HUBBELL Series 16 Single Pole Female Connector:
- Amperage Rating: Rated for up to 300 A (AC/DC)
- Voltage Rating: Suitable for use at up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #6 to 2/0 AWG
- Contact Material: Brass single cam contact
- Terminal Connection Type: Double set screw terminal connection secures the conductor within the connector
- NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements for protection against dust, water, and corrosion
- Standards Compliance: Listed under UL and cUL
- meets ANSI/NFPA 70 (NEC) standards
- fits UL1691 specifications
- Housing Material: Thermoplastic elastomer construction
- Flammability Rating: HB per UL94 standard
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 8.00
- Package Height: 2.50
- Package Weight: 0.80
