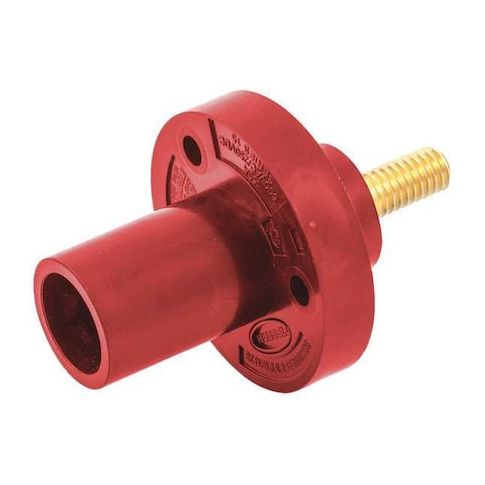

Receptacle, Red, Male, Threaded Stud, 150 A MPN:HBL15MRSR

• The HUBBELL Receptacle, Stud, Red, Male, Taper is a single pole device intended for use in industrial settings involving temporary electrical power distribution. This male inlet receptacle includes a threaded stud termination and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and supports both AC and DC currents up to 150 amps at voltages of up to 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer

• suitable for indoor dry locations unless otherwise protected.




  Key Features of the HUBBELL Receptacle, Stud, Red, Male, Taper:





  • Amperage/Voltage Rating: Rated for 150 A maximum at 600V AC or 250V DC


  • Terminal Connection: Threaded stud connection


  • Wire Accommodation: Accepts conductor sizes from #8 AWG to #2 AWG
  • fits UL1691 standards


  • Material Construction: Brass contact material with thermoplastic elastomer housing


  • NEMA Enclosure Ratings: Suitable for use in enclosures rated NEMA Type 12, 3R, and 4X


  • Mounting Style: Through hole mounting with included screw hardware


  • Pole Configuration: Single pole (1-pole) design
  • straight connection orientation
  • taper nose style


  • Certifications/Standards: Meets ANSI/NFPA 70 (NEC), cUL Listed requirements
  • UL Enclosure Types listed above
