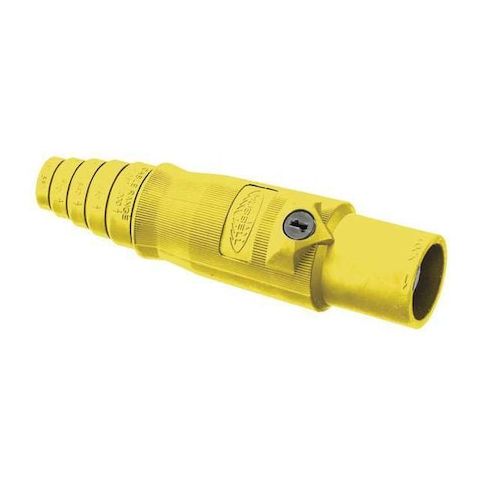

Single Pole Inline, 400 A, Male, Yellow MPN:HBL400MY
Free Shipping
In Stock
The HUBBELL Series 16 Single Pole Male Connector is a reliable and versatile solution for temporary electrical power distribution applications. Ideal for use in harsh environments, this connector meets NEMA Types 3R, 4X, and 12 requirements, ensuring safe and secure connections in wet, corrosive, and explosive locations. With a wide cable range of 2/0 to 4/0 AWG and a high amperage rating of up to 400A AC or DC, this connector is perfect for construction sites, industrial settings, and emergency power distribution. Its durable thermoplastic elastomer housing and Insulgrip design make assembly and disassembly easy, reducing downtime and increasing productivity.
Top product features:
- Operates at up to 400 A AC or DC
- Accepts wire sizes from 2/0 AWG to 4/0 AWG
- Features a taper nose style with double set screw terminal connections
Top product applications:
- Temporary electrical power distribution
- Construction and industrial electrical applications
- Emergency and backup power systems
The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution applications. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose style with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style housing to assist with assembly and disassembly.
Key Features of the HUBBELL Series 16 Single Pole Male Connector:
- Amperage Rating: Rated for operation at up to 400 A AC or DC
- Voltage Rating: Up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG
- Contact Material: Brass contacts with a single cam design
- see manufacturer specifications regarding performance characteristics
- Terminal Connection Type: Double set screw terminals designed to hold conductors in position
- NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements
- Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL Enclosure Types, and UL94 HB flammability rating
- Compatible With: Compatible with Series 15, Series 16, and Insulgrip devices
- meets UL1691 specifications
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 2.25
- Package Weight: 0.73
