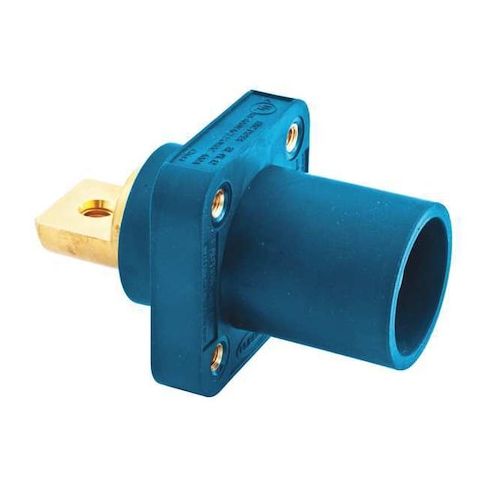

Receptacle, Double Set Screw, Blue, Male MPN:HBLMRBBL

• The HUBBELL Series 16 Male Receptacle is a single pole device rated for use in temporary power distribution systems requiring high ampacity electrical connections. This flanged, bus bar mount receptacle includes a double set screw terminal connection and accommodates wire sizes from #4 AWG to 4/0 AWG. It is constructed with a thermoplastic elastomer housing and brass contacts, intended for indoor use

• additional protection may be required for other environments.




  Key Features of the HUBBELL Series 16 Male Receptacle:





  • Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


  • Voltage Rating: Rated for operation at up to 600V AC or 250V DC


  • Cable Range: Accepts cable sizes from #4 AWG to 4/0 AWG


  • Terminal Connection Type: Double set screw terminals are used to connect compatible conductors


  • Mounting Style: Threaded mounting with included hardware
  • fits UL1691 requirements


  • NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards


  • Material Construction: Thermoplastic elastomer housing with brass conductor/contact material


  • Standards Compliance: ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types listed
