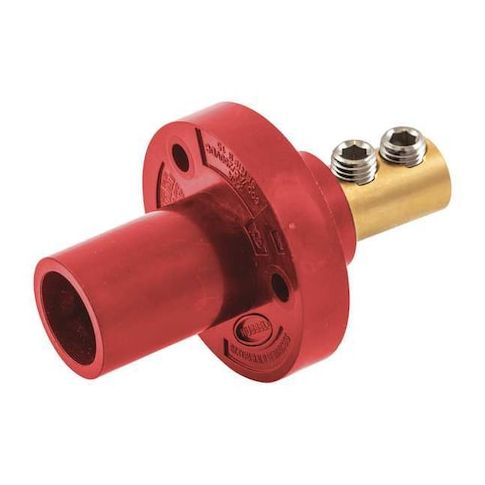

Recpt, Red, Male, Double Set Screw, 150 A MPN:HBL15MRR
Free Shipping
In Stock
The HUBBELL Receptacle, Male, Series 15 is a versatile and reliable solution for temporary electrical power distribution in industrial settings. Designed for use in harsh environments, this receptacle features a thermoplastic elastomer housing and brass contacts for secure connectivity. With a rating of 150 amps at 600V AC or 250V DC, it can handle demanding applications. Suitable for use in NEMA Types 12, 3R, and 4X enclosures, this receptacle is ideal for construction sites, manufacturing facilities, and other areas where temporary power is needed. Its compact design and screw mount make installation easy, providing a reliable and efficient solution for power distribution.
Top product features:
- Accommodates wire sizes from #8 to #2 AWG for flexible cable connections.
- Rated for up to 150 amps at 600V AC or 250V DC for reliable power distribution in various applications.
- Includes a double set screw termination for secure wire connections and easy installation.
Top product applications:
- Temporary Electrical Power Distribution in Industrial Settings
- Temporary Electrical Power Distribution in Construction Sites
- Temporary Electrical Power Distribution in Outdoor Events
The HUBBELL Receptacle, Male, Series 15 is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male inlet receptacle includes a double set screw termination and accommodates wire sizes from #8 to #2 AWG. It is rated for up to 150 amps at 600V AC or 250V DC and is constructed with a thermoplastic elastomer housing and brass contacts for reliable connectivity in indoor dry locations unless additional protection is provided.
Key Features of the HUBBELL - Receptacle, Male, Series 15:
- Amperage/Voltage Rating: Rated for 150 A
- supports up to 600V AC or 250V DC operation
- Cable Range: Accepts cable sizes from #8 to #2 AWG
- Connection Type: Includes a double set screw termination
- Material Construction: Housing made from thermoplastic elastomer
- contact material is brass
- NEMA Enclosure Ratings: For use in NEMA Types 12, 3R, and 4X enclosures when installed according to manufacturer instructions
- Mounting Style: Screw mount with through hole mounting design
- includes mounting hardware
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
- fits UL1691 standard
- Pole Configuration: Single pole (1-pole) device compatible with Series 15 products
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.20
