Single Pole Inline, 300 A, Male, Orange MPN:HBL300MO
Free Shipping
In Stock

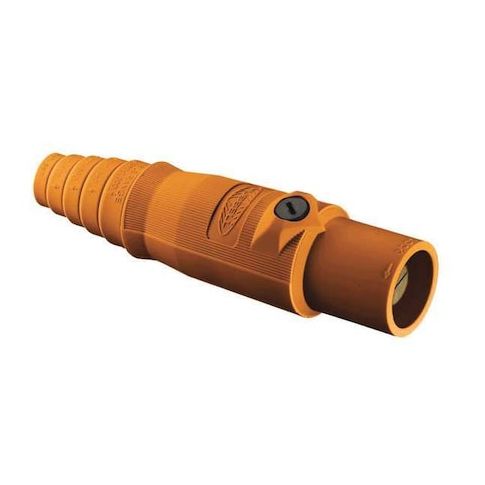

The HUBBELL Connectr is a versatile and durable single pole male connector designed for temporary electrical power distribution. Suitable for use in harsh environments, it accommodates cable sizes from 6 AWG to 2/0 AWG and features a secure double set screw terminal connection. With an amperage rating of up to 300 A AC/DC and voltage rating of up to 600V AC or 250V DC, it meets the demands of various applications, including construction, events, and emergency response situations. Its thermoplastic elastomer housing provides long-lasting durability and insulation, ensuring safe and reliable power distribution.
Top product features:
- Accommodates cable sizes from 6 AWG to 2/0 AWG.
- Rated for up to 300 A AC/DC and supports up to 600V AC or 250V DC.
- Features a double set screw terminal connection for secure conductor hold.
Top product applications:
- Temporary electrical power distribution
- Temporary power distribution in hazardous locations
- Temporary power distribution in wet locations
The HUBBELL Connectr,3R, 4X, 12,Male,Orange,6 to 2/0 is a single pole male connector intended for use in temporary electrical power distribution. It accommodates cable sizes from 6 AWG to 2/0 AWG and features a double set screw terminal connection.
Key Features of the HUBBELL Single Pole Male Connector:
- Amperage Rating: Rated for up to 300 A AC/DC
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG
- Terminal Connection Type: Double set screw design holds conductors in place
- Housing Material: Thermoplastic elastomer housing provides durability and insulation
- NEMA Enclosure Ratings: Suitable for use with NEMA Types 3R, 4X, and 12 enclosures
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements
- Taper Nose Style: Taper nose single pole device compatible with Series 16 applications
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 7.00
- Package Height: 2.25
- Package Weight: 0.77
