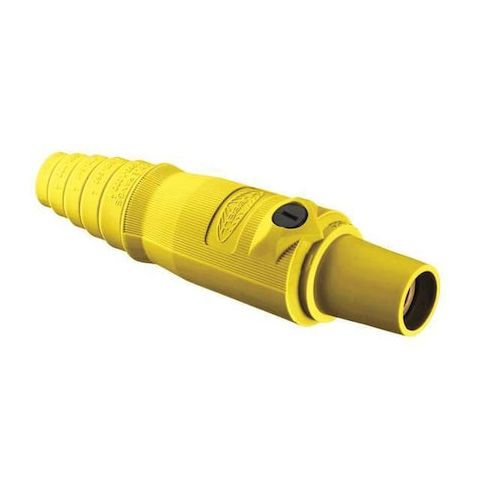

SinglePoleInline, 300A, Female, Yellow MPN:HBL300FY
Free Shipping
In Stock
The HUBBELL Connector, Series 16, is a versatile and reliable solution for temporary electrical power distribution applications. Designed for use in NEMA Types 3R, 4X, and 12 enclosures, this single pole female connector features a brass single cam contact and thermoplastic elastomer housing, suitable for cable sizes ranging from 6 AWG to 2/0 AWG. With a rating of up to 300 A and support for 600V AC or 250V DC, it's perfect for applications such as construction sites, outdoor events, and emergency power systems, providing secure and durable connections in harsh environments.
Top product features:
- The connector features a brass single cam contact.
- The connector is rated for up to 300 A and supports voltage ratings of 600V AC or 250V DC.
- The connector features a double set screw terminal connection for secure assembly without special tools.
Top product applications:
- Temporary electrical power distribution
- Construction and industrial applications
- Outdoor electrical installations in NEMA Types 3R, 4X, and 12 enclosures
The HUBBELL Connector, Series 16, is a single pole female connector intended for use in temporary electrical power distribution applications. It features a brass single cam contact and thermoplastic elastomer housing, suitable for cable sizes ranging from 6 AWG to 2/0 AWG. The connector is rated for up to 300 A and supports voltage ratings of 600V AC or 250V DC. Designed with a taper nose style and double set screw terminal connection, it allows secure assembly without special tools.
Key Features of the HUBBELL - Connector,3R, 4X, 12,Single Pin:
- Amperage Rating: Rated for up to 300 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG
- Contact Material: Brass single cam contact
- Terminal Connection Type: Double set screw design secures conductors in place
- Housing Material: Thermoplastic elastomer housing enhances durability
- NEMA Enclosure Ratings: Suitable for use in NEMA Types 3R, 4X, and 12 enclosures
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements
- fits UL1691 standard
- Series Compatibility: Compatible with Hubbell Series 16 devices
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 7.00
- Package Height: 2.50
- Package Weight: 0.81
