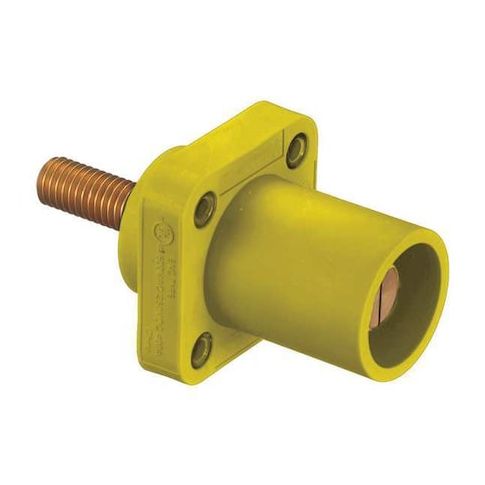

Receptacle, 4-4/0, Male, Ylw, Threaded Stud MPN:HBLMRSY
Free Shipping
In Stock
The HUBBELL Series 16 Male Receptacle is a high-performance electrical connection solution designed for demanding applications. Rated for use in high ampacity connections, this receptacle accommodates wire sizes from #4 AWG to 4/0 AWG, making it ideal for industrial, commercial, and heavy-duty electrical projects. Its threaded stud terminal connection ensures secure and reliable connections, while the thermoplastic elastomer housing provides durability and resistance to harsh environments. Suitable for use in areas with high voltage and current requirements, this receptacle meets ANSI/NFPA 70 and UL Listed standards, ensuring compliance with industry regulations and safety standards.
Top product features:
- Accommodates wire sizes from #4 AWG to 4/0 AWG
- Rated up to 400 A (300/400A AC/DC)
- Features a threaded stud terminal connection with through hole mounting
Top product applications:
- Industrial Electrical Connections
- High-Ampacity Power Distribution Systems
- Heavy-Duty Equipment Mounting and Wiring
The HUBBELL Receptacle, Series 16, is a single pole male receptacle rated for use in high ampacity electrical connections. It accommodates wire sizes from #4 AWG to 4/0 AWG and features a threaded stud terminal connection with through hole mounting. The housing is constructed from thermoplastic elastomer and includes screw terminals.
Key Features of the HUBBELL Series 16 Male Receptacle:
- Amperage Rating: Rated up to 400 A (300/400A AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts #4 AWG to 4/0 AWG conductors
- Terminal Connection Type: Threaded stud with screw terminals
- Material: Brass contacts
- thermoplastic elastomer housing
- NEMA Enclosure Ratings: Types 12, 3R, and 4X
- Mounting Style: Through hole mounting with included hardware
- Standards Compliance: Meets ANSI/NFPA 70, NEC, UL Listed, cUL Listed requirements
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.59
