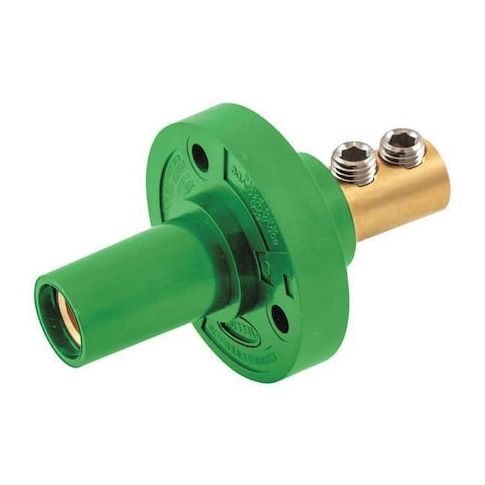

Recpt, Grn, Female, Double Set Screw, 150 A MPN:HBL15FRGN
Free Shipping
In Stock
The HUBBELL Receptacle, Green, Female, 8-2, Taper is a reliable and versatile solution for temporary electrical power distribution in industrial settings. Suitable for use in a variety of applications, including construction, manufacturing, and event management, this receptacle provides a secure and efficient way to connect and disconnect power. Its double set screw terminal connection and NEMA ratings ensure safe and durable performance, while its compact design and screw mount make it easy to install and integrate into existing systems. Ideal for use in harsh environments, this receptacle meets ANSI/NFPA 70 and UL Listed requirements for added peace of mind.
Top product features:
- Accommodates cable sizes from 8 AWG to 2 AWG.
- Features a double set screw terminal connection that allows wiring without the need for special tools.
- Rated for up to 150 A at 600V AC or 250V DC.
Top product applications:
- Temporary electrical power distribution in industrial applications
- Single phase circuits in NEMA Types 12, 3R, and 4X enclosures
- Power distribution in indoor dry locations requiring a green female receptacle
The HUBBELL Receptacle, Green, Female, 8-2, Taper is a single pole device suitable for use in industrial applications involving temporary electrical power distribution. This female receptacle features a taper nose design and accommodates cable sizes from 8 AWG to 2 AWG. It is compatible with Series 15 devices and features a double set screw terminal connection that allows wiring without the need for special tools.
Key Features of the HUBBELL Receptacle, Green, Female, 8-2, Taper:
- Amperage Rating: Rated for up to 150 A at 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #8 to #2 AWG
- Terminal Connection Type: Double set screw termination that facilitates wire connection
- Material: Housing made from thermoplastic elastomer
- contact material is brass
- NEMA Enclosure Ratings: Suitable for use in NEMA Types 12, 3R, and 4X enclosures (indoor dry locations unless otherwise protected)
- Mounting Style: Screw mount with through hole mounting configuration
- includes mounting hardware
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed (UL1691), cUL Listed requirements
- Number of Poles / Phase: Single pole device designed for single phase circuits
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
