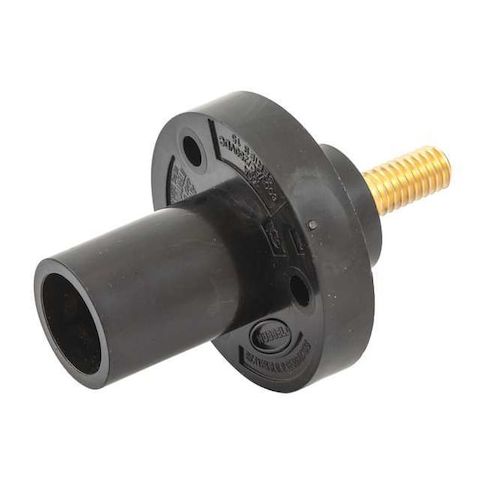

Receptacle, Single Pin, Male, Blk, Taper MPN:HBL15MRSBK
Free Shipping
In Stock
The HUBBELL Single Pin Male Receptacle is a versatile and reliable solution for temporary electrical power distribution in industrial settings. Its compact design and threaded stud termination make it easy to install and use, accommodating wire sizes from #8 to #2 AWG and rated for up to 150 amps at 600V AC or 250V DC. Suitable for indoor dry locations, this receptacle meets NEMA Types 12, 3R, and 4X requirements and is UL Listed, cUL Listed, and ANSI/NFPA 70 (NEC) compliant. Ideal for applications such as construction sites, festivals, and outdoor events, this receptacle provides safe and reliable power distribution in a rugged and durable package.
Top product features:
- Accommodates wire sizes from #8 to #2 AWG
- Rated for up to 150 amps at 600V AC or 250V DC
- Meets NEMA Types 12, 3R, and 4X requirements
Top product applications:
- Temporary electrical power distribution in industrial settings
- Temporary electrical power distribution in construction sites
- Temporary electrical power distribution in outdoor locations where weather protection is needed
The HUBBELL Single Pin Male Receptacle is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This receptacle includes a straight connection orientation and threaded stud termination, and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and is rated for up to 150 amps at 600V AC or 250V DC. The housing is constructed with a thermoplastic elastomer housing
- suitable for indoor dry locations unless otherwise protected.
Key Features of the HUBBELL Single Pin Male Receptacle:
- Amperage Rating: Rated for 150 A maximum (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts #8 to #2 AWG wire sizes
- Connection Type: Threaded stud terminal connection with through hole mounting style
- Material Construction: Brass conductor/contact material
- thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed, cUL Listed, ANSI/NFPA 70 (NEC), UL Enclosure Types listed
- Pole Configuration: Single pole (1-pole) design
- male inlet style with taper nose end type
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.10
