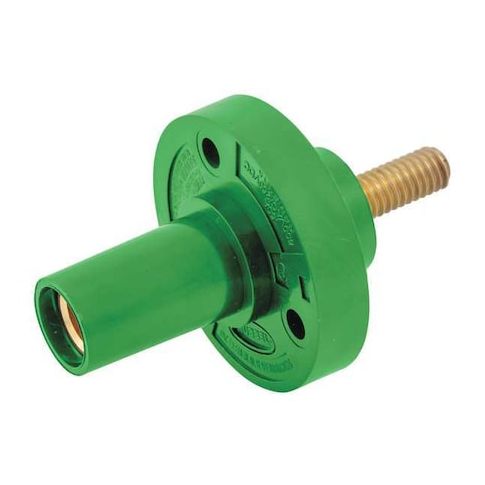

Receptacle, Stud, Grn, Female, Taper MPN:HBL15FRSGN
Free Shipping
In Stock
The HUBBELL Receptacle, Stud, Green, Female, Taper is a versatile and reliable device suitable for temporary electrical power distribution in industrial settings. Its female receptacle design with threaded stud termination accommodates wire sizes from #8 to #2 AWG, supporting up to 150 amps at 600V AC or 250V DC. This device is compatible with Series 15 devices and meets NEMA Types 12, 3R, and 4X requirements. Ideal for use in indoor dry locations, it's also UL Listed, cUL Listed, and complies with ANSI/NFPA 70 and National Electric Code (NEC). Perfect for temporary power distribution in industrial settings, construction sites, or event venues.
Top product features:
- Accommodates wire sizes from #8 to #2 AWG
- Supports up to 150 amps at 600V AC or 250V DC
- Meets NEMA Types 12, 3R, and 4X requirements for indoor dry locations
Top product applications:
- Temporary Electrical Power Distribution in Industrial Settings
- Temporary Electrical Power Distribution in Construction Sites
- Temporary Electrical Power Distribution in Event Venues
The HUBBELL Receptacle, Stud, Green, Female, Taper is a single pole device suitable for use in industrial settings where temporary electrical power distribution is needed. This female receptacle includes a threaded stud termination and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and supports up to 150 amps at 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer
- intended for use in indoor dry locations unless otherwise protected.
Key Features of the HUBBELL Receptacle, Stud, Green, Female, Taper:
- Amperage Rating: Rated for up to 150 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Connection Type: Threaded stud terminal connection with through hole mounting style
- Compatible Series: Designed for use with Series 15 single pole devices
- Contact/Conductor Material: Brass contacts and conductor material
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed
- cUL Listed
- ANSI/NFPA 70
- National Electric Code (NEC)
- Cable Accommodation: Accepts #8 to #2 AWG wire sizes (#4 AWG Type SC/PPC recommended)
- Pole Configuration: Single-pole device with straight connection orientation
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 0.20
