Recpt, Orange, Female, Threaded Stud, 150 A MPN:HBL15FRSR
Free Shipping
In Stock

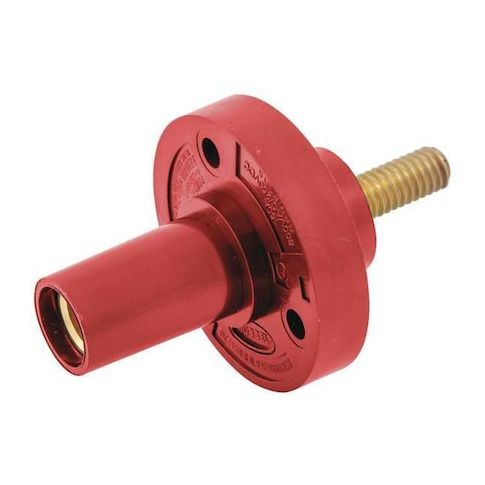

The HUBBELL Receptacle, Stud, Red, Taper Nose is a reliable and versatile single pole female receptacle designed for industrial environments. Its threaded stud termination and compatibility with Series 15 devices make it an ideal choice for a variety of applications, including manufacturing facilities, construction sites, and heavy-duty equipment installations. With a rating of up to 150 A at 600V AC or 250V DC, this receptacle provides safe and efficient power distribution. Its durable thermoplastic elastomer housing and brass contacts ensure long-lasting performance, making it a valuable addition to any industrial electrical system.
Top product features:
- Accommodates #8 to #2 AWG wire sizes
- Rated for up to 150 A at 600V AC or 250V DC
- Meets NEMA Types 12, 3R, and 4X requirements
Top product applications:
- Industrial electrical panels
- Commercial construction projects
- Heavy-duty machinery installations
The HUBBELL Receptacle, Stud, Red, Taper Nose is a single pole female receptacle intended for use in industrial environments. It features a threaded stud termination and is compatible with Series 15 devices. The receptacle accommodates #8 to #2 AWG wire sizes and is rated for up to 150 A at 600V AC or 250V DC. Its housing is constructed from thermoplastic elastomer and it includes mounting hardware.
Key Features of the HUBBELL Receptacle, Stud, Red, Taper Nose:
- Amperage Rating: Rated for 150 A maximum
- Voltage Rating: Rated for operation at up to 600V AC or 250V DC
- Connection Type: Threaded stud terminal connection
- Wire Accommodation: Accepts #8 to #2 AWG wire sizes
- Material: Brass contacts with thermoplastic elastomer housing
- NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements
- Standards Compliance: UL Listed
- cUL Listed
- ANSI/NFPA 70
- National Electric Code (NEC)
- Mounting Style: Through hole mounting with included screw hardware
- Pole Configuration: Single pole device (female style)
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 0.17
