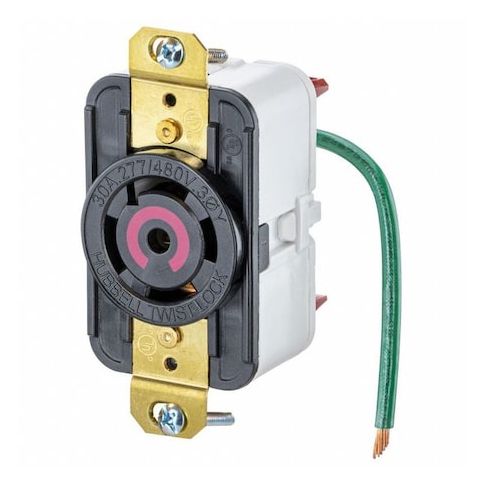

Locking Receptacle, L22-30R, 30 A, 277/480V AC, Three Phase, 4 Pole, Flush Mount, Black MPN:HBL2820ST

• The HUBBELL Locking Receptacle is a 30A, three-phase wye, 277/480V AC twist-lock receptacle intended for use in commercial and industrial settings. It features spring termination technology allows installation without the use of screwdrivers or torque wrenches. The device has a nylon body with UL94 V-2 flammability rating with color coding by voltage to assist in identifying and mating compatible devices.





  Key Features of the HUBBELL Locking Receptacle:





  • Amperage & Voltage: Rated for 30 A at 277/480V AC, suitable for three-phase applications.


  • NEMA Configuration: L22-30R with four poles and five wires
  • face color coded by voltage supports connection compatibility.


  • Wire Accommodation: Accepts solid wire sizes from 14 AWG to 10 AWG and stranded wire sizes from 14 AWG to 8 AWG (including compact stranded).


  • Termination Method: Spring termination is intended to minimize strand relaxation during installation.


  • Material Construction: Brass contacts housed in a nylon body with UL94 V-2 flammability rating
  • UL94 V-2 flammability rating.


  • Mount Type & Hardware: Includes mounting strap and hardware for straightforward installation.


  • Operating Temperature Range: Rated for operation between -40°F and 167°F.


  • Coding & Identification: Face color coded by voltage simplifies locating proper devices on site.


  • Standards Compliance: Meets CSA C22.2 and UL 498 requirements
  • NEMA Enclosure Rating of Type 1
  • IP20 rated protection against ingress of objects greater than 12mm diameter.
