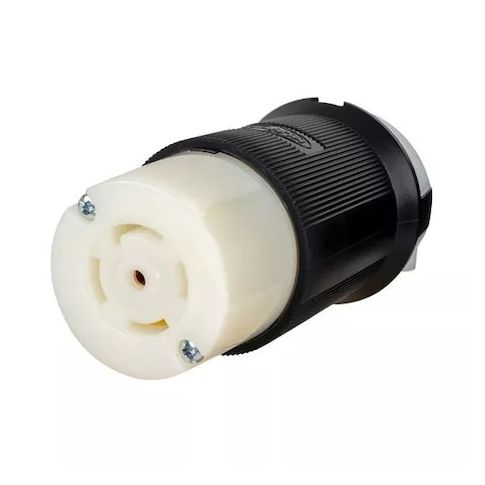

Locking Connector, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Spring Clamp Terminals MPN:HBL2723ST
Out Of Stock
The HUBBELL Locking Connector is a reliable and efficient solution for industrial applications that require a secure and easy-to-use connection. Suitable for indoor use in dry environments, this three-phase connector features a plunger mechanism that secures connections without additional tools. With a current rating of 30A and voltage rating of 250V AC, it can handle demanding tasks. The spring clamp terminals accommodate wire sizes from 8 AWG to 16 AWG, and the nylon housing ensures durability. Ideal for use in manufacturing, construction, and other industrial settings, this connector provides a safe and reliable connection for critical systems.
Top product features:
- The HUBBELL Locking Connector features a plunger mechanism that secures connections without the need for additional tools.
- The connector accommodates wire sizes from 8 AWG to 16 AWG.
- The connector utilizes spring clamp terminals for wire connection.
Top product applications:
- Industrial Power Distribution Systems
- High-End Machinery Control Panels
- Heavy-Duty Electrical Panel Installations
The HUBBELL Locking Connector is a three-phase, 30A, 250V AC industrial connector rated for indoor use in dry environments. Featuring the EdgeConnect™ screwless termination system, it features a plunger mechanism that secures connections without the need for additional tools. The connector accommodates wire sizes from 8 AWG to 16 AWG and utilizes spring clamp terminals.
Key Features of the HUBBELL Locking Connector:
- NEMA Configuration: L15-30R
- Current/Voltage Rating: 30 A, 250V AC
- Poles/Wires: 3 poles, 4 wires
- grounded design
- Wire Connection Type: Spring clamp terminals
- Cable Diameter Range: Accepts cables from 0.35 in to 1.15 in diameter
- Operating Temperature Range: -40°C to +75°C
- Housing Material: Nylon housing
- overall length and outside diameter are both 2.33 in
- IP Rating: IP20 (for indoor use)
- Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, UL 498
- Federal Specification grade
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.90
- Package Width: 2.50
- Package Height: 2.40
- Package Weight: 0.44
