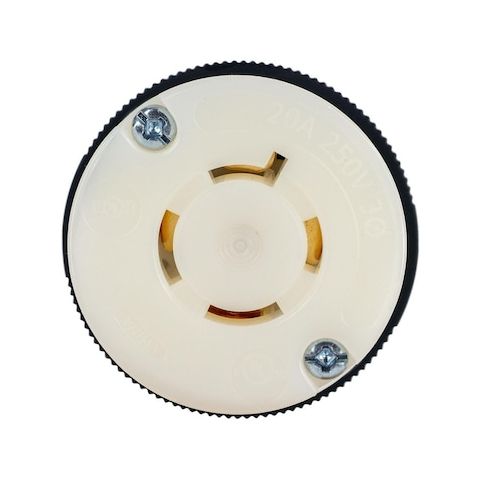

Locking Connector, L15-20R, 20 A, 250V AC, Three Phase, 3 Pole, Spring Clamp Terminals MPN:HBL2423ST
Free Shipping
In Stock
The HUBBELL Locking Connector is a reliable and efficient solution for industrial applications, designed for use in dry, indoor locations. Its EdgeConnect screwless termination system simplifies installation, eliminating the need for tools. The connector features spring clamp terminals and a straight connection orientation, making it easy to integrate with standard wiring styles. Suitable for a wide range of applications, including power distribution, control systems, and equipment connections, this connector ensures secure and reliable connections in environments with operating temperatures ranging from -40°C to +75°C. Its compliance with CSA and UL standards further enhances its reliability and safety.
Top product features:
- The HUBBELL Locking Connector has brass contacts for electrical conductivity.
- The connector features the EdgeConnect screwless termination system that allows users to insert wire and secure it by pressing a plunger, eliminating the need for tools during installation.
- The connector uses spring clamp terminals for secure wire connection.
Top product applications:
- Industrial Control Panels
- Automotive Electrical Systems
- Commercial Electrical Distribution
The HUBBELL Locking Connector is a three-phase, 20A, 250V AC connector designed for industrial use in dry, indoor locations. It features the EdgeConnect™ screwless termination system that allows users to insert wire and secure it by pressing a plunger, eliminating the need for tools during installation. The connector uses spring clamp terminals and has a straight connection orientation with standard wiring style.
Key Features of the HUBBELL Locking Connector:
- Contact Material: Brass contacts are used for electrical conductivity.
- Housing Material: Nylon housing material.
- NEMA Configuration: L15-20 configuration
- compatible with L15-20R receptacles.
- Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG.
- Cable Diameter Range: Accepts cable diameters between 0.35 in and 1.15 in.
- Current/Voltage Rating: Rated for up to 20 A at 250V AC (three-phase).
- Operating Temperature Range: Operating temperature range: -40°C to +75°C.
- UL Flammability Rating: UL 94 HB rated material.*
- Cord Grip Design: Cord grip designed to reduce strain on terminations during use.
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 standards.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.40
- Package Height: 2.40
- Package Weight: 0.45
