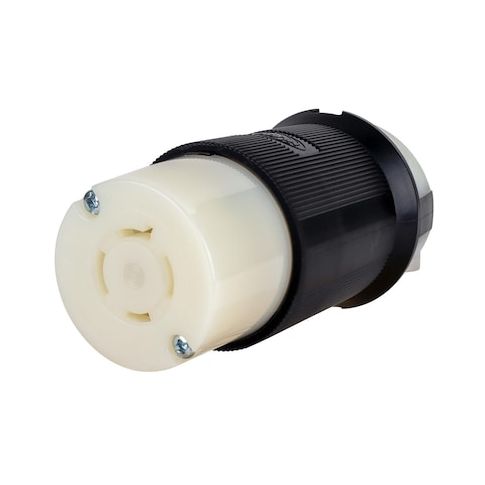

Locking Connector, L14-20R, 20 A, 125/250V AC, Three Phase, 3 Pole, Spring Clamp Terminals MPN:HBL2413ST
Free Shipping
In Stock
The HUBBELL Locking Connector is a reliable and efficient solution for indoor industrial electrical applications, particularly in three-phase, four-wire systems. Its EdgeConnect screwless termination system allows for easy and tool-free wire insertion and secure connections. The spring clamp terminals provide reliable terminations and prevent strand relaxation over time. Suitable for use in dry, indoor locations, this connector meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements. Ideal for applications such as motor control, power distribution, and industrial automation, it supports up to 2 hp motors and is compatible with 16 AWG to 8 AWG wire sizes.
Top product features:
- The EdgeConnect screwless termination system allows users to insert wire and secure connections without tools by pressing down a plunger.
- Spring clamp terminals provide reliable terminations and help prevent strand relaxation over time.
- The connector is rated for operation from -40°C to +75°C in dry, indoor locations, making it suitable for a wide range of indoor industrial electrical applications.
Top product applications:
- Indoor industrial electrical applications
- Three-phase power distribution systems
- Heavy-duty motor control systems
The HUBBELL Locking Connector is a three-phase, four-wire connector designed for indoor industrial electrical applications. It features the EdgeConnect™ screwless termination system, allowing users to insert wire and secure connections without tools by pressing down a plunger. The spring clamp terminals provide reliable terminations and help prevent strand relaxation over time.
Key Features of the HUBBELL Locking Connector:
- Contact Material: Brass contacts for electrical conductivity.
- Housing Material: nylon housing
- see specifications for application suitability.
- NEMA Configuration: L14-20R locking configuration with straight connection orientation.
- Current/Voltage Rating: Rated for 20 A at 125/250V AC
- supports up to 2 hp motors per manufacturer specifications.
- Wire Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG via spring clamp terminals
- funnel-shaped entry aids termination.
- Cable Diameter Range: Suitable for cable diameters between 0.35 in and 1.15 in
- overall outside diameter is 3.86 in with an overall length of 2.33 in.
- Operating Temperature Range: Rated for operation from -40°C to +75°C in dry, indoor locations (IP20 rated).
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements
- UL94 HB flammability rating.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.40
- Package Height: 2.40
- Package Weight: 0.45
