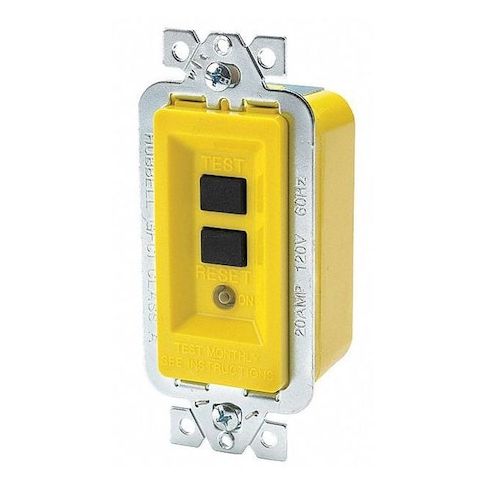

Yellow GFCI Module, 20A 120VAC MPN:GFMST20
Free Shipping
In Stock
The HUBBELL Yellow GFCI Module, 20A 120VAC is a reliable and versatile decorator duplex ground fault circuit interrupter designed for use in a variety of applications, including residential and commercial settings. Its high impact UV stabilized housing and all-glass construction ensure durability and resistance to environmental factors. This module supports single phase, 2-pole, 3-wire grounding connections at 120V AC up to 20 amps, making it ideal for areas with high moisture or water exposure. With its manual reset operation and UL Listed and CSA Certified standards compliance, this module provides peace of mind and protection for users.
Top product features:
- High impact UV stabilized PBT thermoplastic housing
- All-glass construction circuit board
- Accepts #14 AWG to #12 AWG wire sizes via back or side wiring methods using screw terminals
Top product applications:
- Outdoor lighting installation
- Pool or hot tub installation
- Garage or workshop electrical installation
The HUBBELL Yellow GFCI Module, 20A 120VAC is a decorator duplex ground fault circuit interrupter designed for use with Hubbell Wiring Device-Kellems models GFP15M and GFP20M. This module features back and side wired screw terminals for flexible installation and supports single phase, 2-pole, 3-wire grounding connections at 120V AC up to a maximum of 20 amps.
Key Features of the HUBBELL Yellow GFCI Module, 20A 120VAC:
- Housing: High impact UV stabilized PBT thermoplastic housing
- Circuit Board: All-glass construction
- Ingress Protection: Rated IP21
- Mounting Hardware: Includes screw mounting hardware for installation
- Wire Compatibility: Accepts #14 AWG to #12 AWG wire sizes via back or side wiring methods using screw terminals
- Reset Type & Style: Manual reset operation (manual set)
- Standards Compliance: UL Listed and CSA Certified
- Wattage Rating: Supports loads up to 2500 watts at rated voltage/current
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.75
- Package Width: 3.00
- Package Height: 2.25
- Package Weight: 0.58
