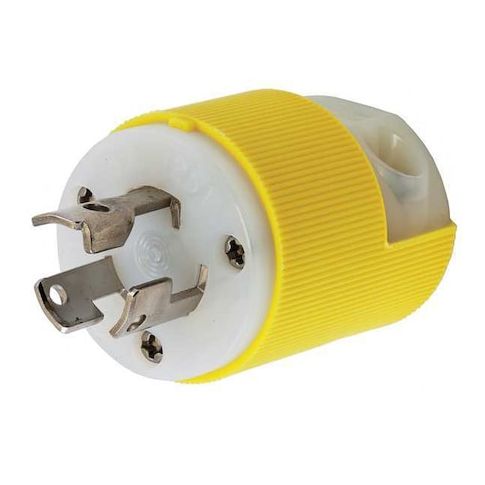

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, White, Yellow MPN:HBL47CM20C
Free Shipping
In Stock
The HUBBELL 15A Locking Plug L5-15P is a reliable and secure electrical plug designed for industrial applications. Suitable for use in harsh environments, it features a ribbed nylon housing that is impact and chemical resistant. With a two-pole, three-wire configuration and a rating for 125V AC and 15 amps, this plug provides a safe and efficient connection. Its screw terminals accommodate various wire sizes, and it withstands extreme temperatures from -40°C to +75°C. Ideal for use in manufacturing, construction, and other industrial settings, this locking plug ensures a secure and reliable connection, reducing the risk of electrical shock and equipment damage.
Top product features:
- The HUBBELL 15A Locking Plug L5-15P features a two-pole, three-wire configuration suitable for industrial applications.
- It includes an individually molded face for each blade configuration to ensure secure connections.
- The plug has a roomy wiring chamber to accommodate various wire sizes, allowing for easy installation and flexibility in wiring options.
Top product applications:
- Industrial Power Distribution
- Construction and Building Sites
- Manufacturing Facilities
The HUBBELL 15A Locking Plug L5-15P is a locking electrical plug suitable for industrial applications. It features a two-pole, three-wire configuration and is rated for 125V AC and 15 amps. The plug includes an individually molded face for each blade configuration, a roomy wiring chamber to accommodate various wire sizes, and a ribbed nylon housing
- impact and chemical resistant.
Key Features of the HUBBELL 15A Locking Plug L5-15P:
- Amperage/Voltage Rating: Rated for 15 A at 125V AC
- NEMA Configuration: L5-15P (2 pole, 3 wire)
- Housing Material: Ribbed nylon housing
- impact and chemical resistant
- Cable/Cord Range: Accepts cable diameters from 0.230 in to 0.720 in (#18 AWG to #10 AWG stranded copper wire)
- Corrosion Resistant: Constructed with corrosion-resistant materials
- Dielectric Strength: Withstands minimum of 2,000V
- Operating Temperature Range: -40°C to +75°C (without impact)
- Wire Connection Type: Screw terminals with standard wiring style
- Certifications/Standards: UL 498 listed
- CSA C22.2 No.42 certified
- Federal Specification W-C-596 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.63
- Package Width: 1.63
- Package Height: 2.88
- Package Weight: 0.05
