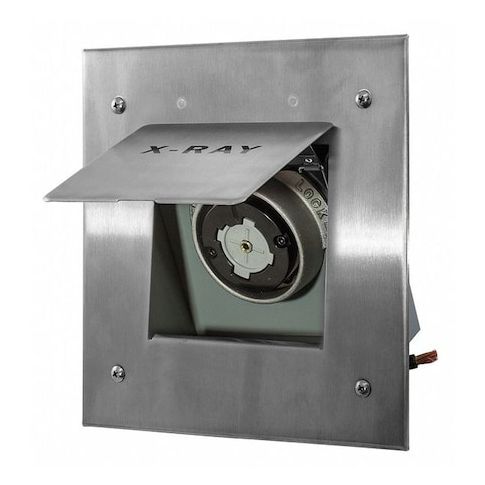

Locking Receptacle, Non-NEMA, 60 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL25605
Free Shipping
In Stock
The HUBBELL 60A Hospital Locking Receptacle is a reliable and secure power connection solution for various settings, including healthcare facilities, medical equipment, and industrial applications. Its hospital-grade construction and locking mechanism ensure tamper-proof connections, meeting the highest standards for safety and reliability. With a rating of 60 amps and 250V AC single-phase operation, this receptacle is suitable for high-capacity connections in standard indoor dry locations. Its flush mount design and screw terminals make it easy to install and maintain, making it an ideal choice for applications where secure and reliable power connections are crucial.
Top product features:
- The HUBBELL 60A Hospital Locking Receptacle features a locking mechanism to secure power connections.
- It is rated for 60 amps and up to 250V AC single-phase operation, providing reliable high-capacity connections.
- The receptacle has a two-pole, three-wire configuration with grounding, ensuring safe and secure power delivery.
Top product applications:
- Mobile X-ray devices
- Indoor dry locations in hospitals and healthcare facilities
- High-capacity power connections in various settings
The HUBBELL 60A Hospital Locking Receptacle is an electrical receptacle intended for power connections in various settings. Featuring a locking mechanism and hospital grade construction, this device is rated for 60 amps and up to 250V AC single-phase operation. Its flush mount design with a rectangular flange allows installation in standard indoor dry locations, making it suitable for use where reliable high-capacity connections are required.
Key Features of the HUBBELL 60A Hospital Locking Receptacle:
- Amperage/Voltage: Rated for 60 A and 250V AC single-phase applications
- Poles/Wires: Two-pole, three-wire configuration with grounding
- NEMA Configuration: Non-NEMA locking type specific to mobile X-ray devices
- Mounting Type: Flush mount with screw mounting hardware
- flanged rectangular shape
- Material Construction: Nylon housing with stainless steel plate
- Wire Size Compatibility: Accepts up to #4 AWG wire via screw terminals
- Enclosure Rating: NEMA 3R/IP30 – suitable for indoor dry conditions unless protected by additional means
- Grade/Certification: Hospital grade
- CSA Certified and UL Listed standards compliance
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 11.00
- Package Height: 5.50
- Package Weight: 5.26
