Locking Plug, Non-NEMA, 60 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Gray MPN:HBL25625
Free Shipping
In Stock

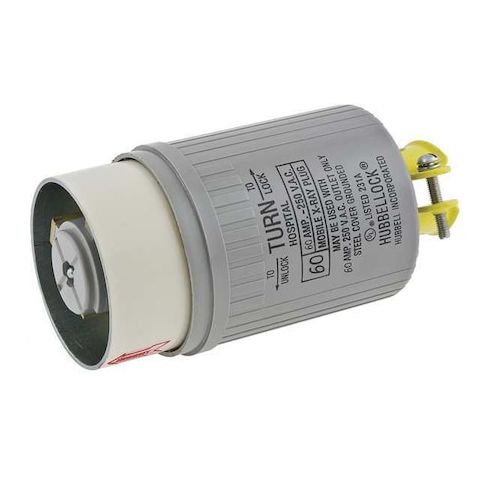

The HUBBELL 60A Hospital Locking Plug is designed for high-demand hospital-grade applications, ensuring secure and reliable connections. Rated for 60 amps and 250V AC single-phase operation, this plug features a non-NEMA, 3-blade configuration and accepts cable diameters from 0.83 in to 1.30 in. The shrouded body with straight connection orientation provides added protection, while the grounded type meets applicable hospital-grade requirements. CSA Certified and UL Listed, this plug offers peace of mind in critical care environments, making it ideal for use in operating rooms, ICUs, and other high-stakes medical facilities where reliability and safety are paramount.
Top product features:
- The HUBBELL 60A Hospital Locking Plug is rated for 60 amps and 250V AC single-phase operation.
- It has a non-NEMA, 3-blade configuration.
- It accepts cable diameters from 0.83 in to 1.30 in.
Top product applications:
- Hospital-grade electrical installations
- Medical equipment connections
- High-power equipment connections in commercial settings
The HUBBELL 60A Hospital Locking Plug is an electrical plug rated for hospital-grade applications.
Key Features of the HUBBELL 60A Hospital Locking Plug:
- Current/Voltage Rating: Rated for 60 amps and 250V AC single-phase operation.
- Configuration: includes a non-NEMA, 3-blade configuration
- Cord Accommodation: Accepts cable diameters from 0.83 in to 1.30 in
- outside diameter of plug is 3.03 in.
- Material Construction: Housing made from nylon
- Design Attributes: Shrouded body with straight connection orientation
- grounded type meeting applicable hospital-grade requirements.
- Standards Compliance: CSA Certified and UL Listed to applicable standards.
- IP Rating: IP30 ingress protection against solid objects greater than or equal to 2.5 mm diameter.
Housing made from nylon housing
- see specifications for material properties, and the shrouded design covers the connection interface.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.20
- Package Width: 3.60
- Package Height: 3.50
- Package Weight: 2.00
