Locking Plug, Non-NEMA, 60 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Gray MPN:HBL25615
Free Shipping
In Stock

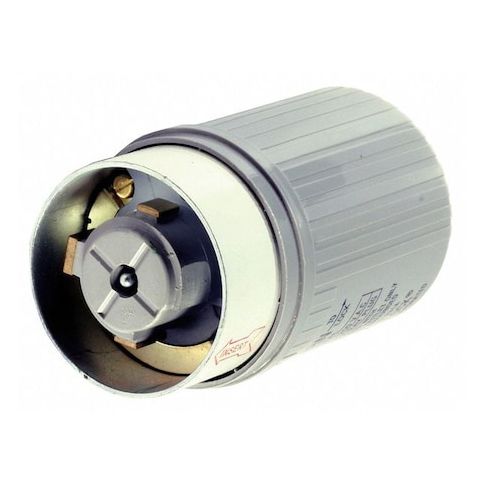

The HUBBELL 60A Hospital Locking Plug is designed for hospital-grade applications requiring specific power connection standards. This locking plug features a non-NEMA, 3-blade configuration and is rated for 60 amps at 250V AC single phase. It offers reliable grounding, impact and chemical resistance, and accepts cable diameters from 0.83 in to 1.30 in. Ideal for use in hospitals, clinics, and healthcare facilities, this plug provides a secure connection for critical medical equipment. Its CSA certification and UL listing ensure compliance with hospital-grade equipment standards, making it a trusted choice for healthcare professionals.
Top product features:
- Current/Voltage Rating: Rated for 60 amps and 250V AC single phase operation
- Housing Material: Nylon body with epoxy coating provides impact and chemical resistance
- Grounding: Grounded construction supports reliable grounding
Top product applications:
- Hospital-grade applications requiring specific power connection standards
- Power connection in medical facilities and hospitals
- Industrial settings where high current and voltage requirements are necessary
The HUBBELL 60A Hospital Locking Plug is an electrical plug intended for hospital-grade applications requiring specific power connection standards. This locking plug features a non-NEMA, 3-blade configuration and is rated for 60 amps at 250V AC single phase. Its construction includes a nylon housing with epoxy-coated finish.
Key Features of the HUBBELL 60A Hospital Locking Plug:
- Current/Voltage Rating: Rated for 60 amps and 250V AC single phase operation
- Configuration: Non-NEMA, polarized, shrouded design with three blades (2 poles, 3 wires)
- Housing Material: Nylon body with epoxy coating provides impact and chemical resistance
- Cord Size Compatibility: Accepts cable diameters from 0.83 in to 1.30 in
- Wire Connection Type: Screw terminals support standard wiring style
- Grounding: Grounded construction supports reliable grounding
- IP Rating: IP30 protection against solid objects greater than 2.5 mm
- Standards Compliance: CSA Certified and UL Listed as hospital grade equipment
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 92 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.25
- Package Width: 6.50
- Package Height: 5.12
- Package Weight: 2.80
