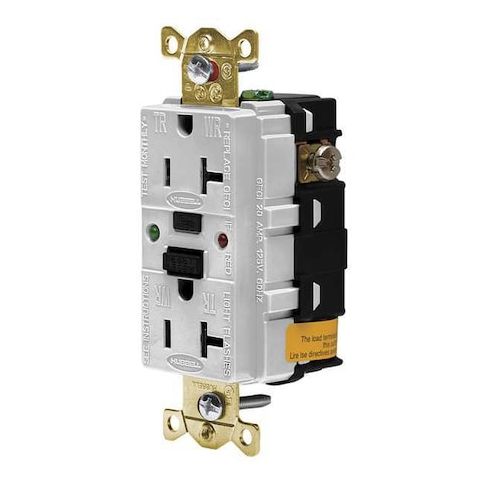

GFCI Receptacle, 20A, 125VAC, 5-20R, White MPN:GFSG5362W
Free Shipping
In Stock
The HUBBELL GFCI Receptacle is a reliable and feature-rich solution for environments requiring ground fault protection. Suitable for use in residential, commercial, and industrial settings, this 20A, 125VAC duplex outlet provides tamper-resistant and weather-resistant construction, ensuring a secure and durable installation. With its AUTOGUARD self-test technology, the device performs periodic monitoring and alerts for trip and end-of-life conditions. Ideal for use in areas prone to water exposure, such as kitchens, bathrooms, and laundry rooms, this GFCI receptacle meets or exceeds industry standards, including UL 943 Class A GFCIs and NEC requirements, providing peace of mind for homeowners and businesses alike.
Top product features:
- AUTOGUARD self-test technology performs periodic monitoring of the receptacle's status and will interrupt power according to design specifications when certain conditions are detected.
- The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts.
- The receptacle is tamper-resistant and weather-resistant in its construction.
Top product applications:
- Residential Electrical Outlets
- Industrial Electrical Outlets
- Outdoor Electrical Outlets
The HUBBELL GFCI Receptacle is a 20A, 125VAC duplex outlet suitable for use in environments where ground fault protection is specified. It features AUTOGUARD® self-test technology performs periodic monitoring of the receptacle’s status and will interrupt power according to design specifications when certain conditions are detected. The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts. Tamper-resistant and weather-resistant construction.
Key Features of the HUBBELL GFCI Receptacle:
- Amperage/Voltage: Rated for 20A at 125VAC with feed-through capability
- NEMA Configuration: 5-20R decorator duplex outlet
- Self-Test Function: Performs automatic self-testing at regular intervals as specified by manufacturer
- Tamper & Weather Resistant: Features tamper resistance and weather resistance
- Construction: High impact nylon housing with nickel-plated brass contacts
- stainless steel mounting hardware included
- Wire Accommodation: Accepts #14–10 AWG stranded or solid copper conductors via back or side wiring methods
- Reset Type: Automatic reset after tripping event
- Status Indicators: Visual indicators on faceplate display operational states including trip and end-of-life conditions
- Standards Compliance: Meets UL 943 Class A GFCIs, UL 498, NEC, CEC & OSHA requirements
- CSA certified
- NEMA WD-6 listed
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.12
- Package Height: 4.75
- Package Weight: 0.35
