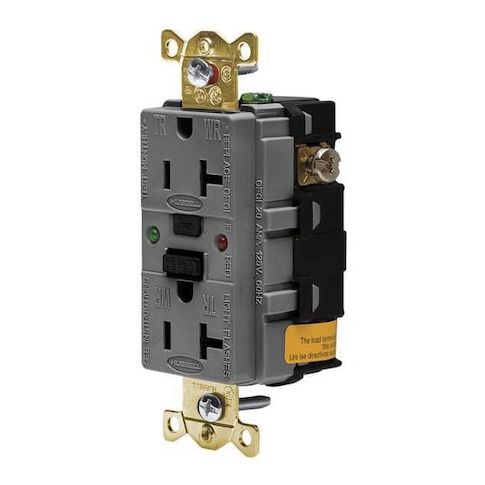

GFCI Receptacle, 20A, 125VAC, 5-20R, Gray MPN:GFSG5362GRY
Free Shipping
In Stock
Protect your home and workplace with the HUBBELL GFCI Receptacle, a reliable and feature-rich solution for environments where ground fault circuit interruption is specified. Rated for 20A at 125VAC, this duplex outlet boasts AUTOGUARD self-test technology, ensuring continuous monitoring and automatic power disconnection in case of critical component failure. Suitable for industrial environments, this GFCI receptacle features tamper-resistant and weather-resistant construction, making it perfect for kitchens, bathrooms, and outdoor areas. With its wide operating range and compliance with UL, CSA, and NEC standards, this GFCI receptacle provides peace of mind and protection against electrical shock and fires.
Top product features:
- AUTOGUARD self-test technology continuously monitors the receptacle's protection function and automatically disconnects power if critical components are compromised.
- The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts.
- The receptacle prevents power delivery to the face of the receptacle under reverse wiring conditions.
Top product applications:
- Residential Electrical Installations
- Commercial Electrical Installations
- Industrial Electrical Installations
The HUBBELL GFCI Receptacle is a 20A, 125VAC duplex outlet rated for use in environments where ground fault circuit interruption is specified. It features AUTOGUARD® self-test technology with periodic monitoring of the receptacle’s protection function that continuously monitors the receptacle’s protection capability and automatically disconnects power if critical components are compromised. The device includes visual indicators for power status, trip condition, ground fault detection, and end-of-life alerts. The device includes a feature that prevents power delivery to the face of the receptacle under reverse wiring conditions.
Key Features of the HUBBELL GFCI Receptacle:
- Amperage/Voltage: Rated for 20A at 125VAC with feed-through capability
- NEMA Configuration: 5-20R decorator duplex outlet
- Self-Test Function: Performs periodic monitoring
- features include tamper-resistant and weather-resistant construction
- Construction: Nylon housing
- nickel-plated brass contacts
- stainless steel screws
- Mounting Type: Flush mount with included gray nylon and stainless steel wall plates plus mounting hardware
- Circuit Protection: Trip threshold: 4-6 mA, response time up to 0.025 seconds
- automatic reset
- Wire Accommodation: Accepts #14–10 AWG stranded or solid copper conductors via back or side screw terminals
- Operating Range: -31°F to 150.8°F maximum temperature range
- suitable for industrial environments
- Standards Compliance: Meets UL 943 Class A GFCIs, UL 498, ANSI 73, CSA Certified, NEC & CEC requirements
- NEMA WD-6 listed
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.12
- Package Height: 4.75
- Package Weight: 0.35
