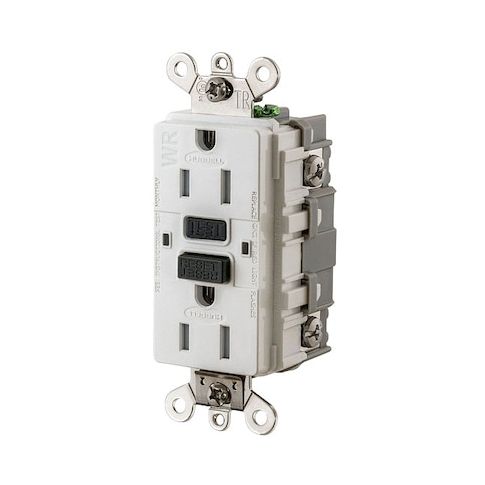

GFCI Receptacle, 15A, 125VAC, 5-15R, White MPN:GFSG5262W

• The HUBBELL GFCI Receptacle is a duplex, ground fault circuit interrupter rated for use in industrial environments. Rated at 15A and 125VAC with a NEMA 5-15R configuration, it features AUTOGUARD® technology with periodic monitoring of protection capability (every 30 seconds). The receptacle disconnects power when GFCI protection is not detected or when certain internal conditions occur. Visual indicators on the device provide visual indicators for power availability, trip condition, ground fault presence, and end-of-life notification.





  Key Features of the HUBBELL GFCI Receptacle:





  • Amperage/Voltage: Rated for 15A and 125VAC operation


  • Self-Test Function: Performs periodic self-tests of GFCI functionality at approximately 30-second intervals


  • Tamper resistant
  • weather resistant construction allows installation in specified damp locations per manufacturer’s guidelines


  • Trip Level/Time: Trips at 4-6 mA within 0.025 seconds


  • Visual Indicators: Provides visual indicators for power availability, trip condition, ground fault presence, and end-of-life notification


  • Wiring Options: Accepts #14–10 AWG copper conductors
  • supports back and side wiring methods via screw terminals


  • NEMA Configuration: Duplex decorator style with NEMA 5-15R outlets
  • flush mount installation


  • Includes Accessories: Supplied with one white nylon wall plate, one stainless steel wall plate, and mounting hardware


  • Certain Standards Met: Meets UL 943 Class A GFCIs & UL 498
  • CSA certified
  • complies with NEC, CEC & OSHA requirements (UL File E-41978)
