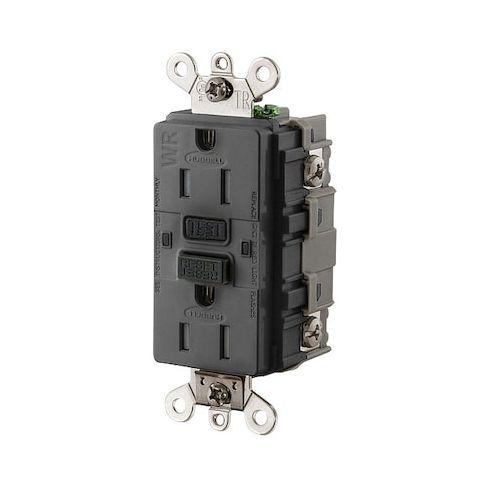

GFCI Receptacle, 15A, 125VAC, 5-15R, Black MPN:GFSG5262BLK

• The HUBBELL GFCI Receptacle is a 15A, 125VAC duplex outlet suitable for use in environments requiring ground fault protection. Featuring AUTOGUARD® self-test technology, this receptacle includes self-test technology that monitors device status and disconnects power when specified conditions are met. The device includes visual indicators display device status including power, trip condition, ground fault detection, and end-of-life notification. It also features tamper-resistant and weather-resistant construction with robust materials suitable for demanding applications.





  Key Features of the HUBBELL GFCI Receptacle:





  • Amperage/Voltage: Rated for 15A at 125VAC
  • supports feed-through up to 20A


  • Self-Test Function: Continuously tests every 30 seconds to monitor protection capability


  • Tamper Resistant & Weather Resistant: Tamper-resistant construction helps reduce the risk of foreign object insertion
  • weather-resistant materials intended for use in outdoor or damp locations


  • Visual Indicators: Display device status including power, trip condition, ground fault detection, and end-of-life notification


  • Construction: High impact resistant nylon housing with nickel-plated brass contacts and stainless steel hardware


  • NEMA Configuration: Duplex decorator style with NEMA 5-15R configuration


  • Mounting Type: Flush mount
  • includes both black nylon and stainless steel wall plates plus mounting hardware


  • Circuit Protection Trip Level/Time: Trips at 4-6 mA within 0.025 seconds


  • Cable Accommodation/Wiring Method: Accepts #14–10 AWG copper conductors via back or side wiring using screw terminals


  • Standards Compliance: Meets UL 943 Class A GFCIs, UL 498 for receptacles
  • complies with NEC, CEC & OSHA requirements
  • ANSI/CSA/NEMA certified ratings
